Keysight U7242A USB 3.0 Test Fixture for Infiniium Oscilloscopes

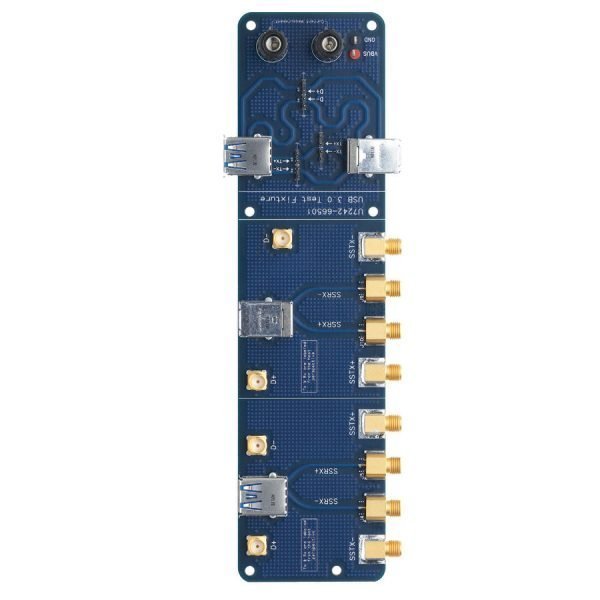

Keysight U7242A USB 3.0 Test Fixture

The Keysight U7242A USB 3.0 Test Fixture is an essential accessory for engineers working with Infiniium Series oscilloscopes. It offers direct SMA connections that simplify USB 3.0 signal testing, ensuring accurate and repeatable measurements for design validation and debug.

Key Features & Highlights

• Direct SMA Connections: Eliminates the need for adapters or probes, reducing signal degradation and setup time.
• High-Speed Support: Designed for USB 3.0 data rates up to 5 Gbps, ensuring compatibility with SuperSpeed signals.
• Low Insertion Loss: Maintains signal integrity with minimal attenuation, preserving measurement accuracy.
• Compact & Portable: Lightweight design facilitates easy transport and use in various test environments.
• Infiniium Compatibility: Seamlessly integrates with Keysight Infiniium Series oscilloscopes for streamlined workflow.

Applications

Ideal for USB 3.0 device characterization, compliance testing, and troubleshooting in R&D labs, production test, and field service. The U7242A enables engineers to quickly verify signal quality, debug protocol issues, and validate designs with confidence.
