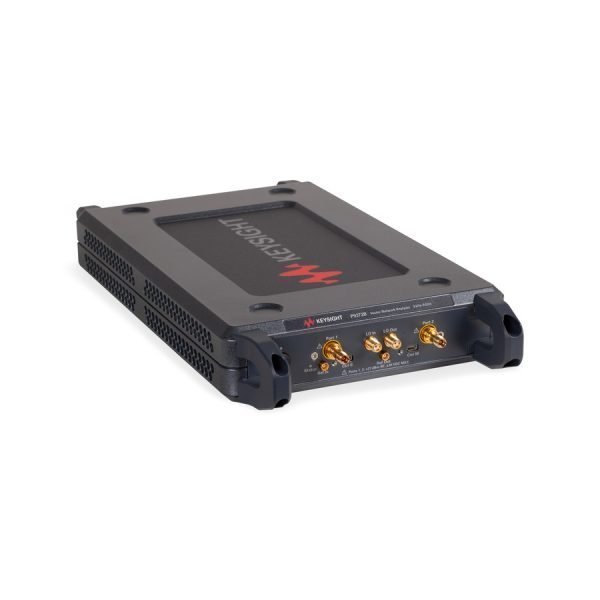

Keysight P9372B Vector Network Analyzer, 9 kHz to 9 GHz, 2-Port

Keysight P9372B Vector Network Analyzer

The Keysight P9372B Vector Network Analyzer (VNA) is a compact, portable instrument engineered for engineers and technicians who demand accurate and reliable RF measurements. Covering a frequency range of 9 kHz to 9 GHz with a 2-port configuration, this Streamline Series analyzer offers exceptional performance and versatility. Its Thunderbolt 3 interface ensures rapid data transfer, while a 120 dB dynamic range and measurement speeds up to 1000 sweeps per second enable efficient testing and troubleshooting.

Key Features & Highlights

• Wide Frequency Range: 9 kHz to 9 GHz covers low-frequency RF to microwave applications.
• 2-Port Configuration: Ideal for characterizing 2-port devices such as filters, amplifiers, and cables.
• High Dynamic Range: 120 dB ensures accurate measurement of high-insertion-loss devices.
• Fast Measurement Speed: Up to 1000 sweeps per second boosts throughput in production environments.
• Thunderbolt 3 Interface: Provides high-speed data transfer and seamless PC connectivity.
• Intuitive Touchscreen: Large display with built-in help simplifies operation and reduces training time.
• Compact and Portable: Lightweight design facilitates field use and bench-top space savings.

Applications

The P9372B is well-suited for a variety of RF testing scenarios, including:

• Component characterization (filters, amplifiers, attenuators)
• PCB and cable testing
• Antenna tuning and matching
• Education and research laboratories
• Field service and installation verification

With its combination of performance, portability, and ease of use, the Keysight P9372B empowers engineers to achieve precise results quickly, enhancing productivity and confidence in their measurements.
