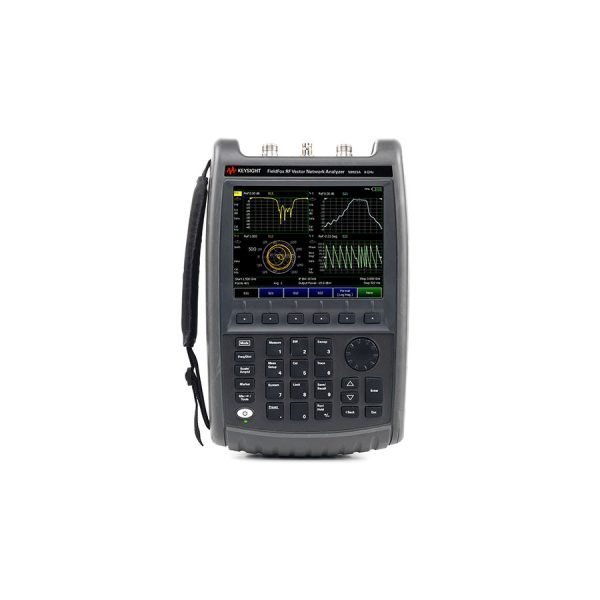

Keysight N9923A/106 Vector Network Analyzer, 6 GHz

Keysight N9923A/106 Vector Network Analyzer, 6 GHz

The Keysight N9923A/106 is a high-performance vector network analyzer designed for accurate and efficient RF and microwave measurements. Covering a frequency range of 9 kHz to 6 GHz, this VNA provides the precision and reliability required for demanding applications in research, development, and production testing. With its advanced features and user-friendly interface, the N9923A/106 is an essential tool for engineers working with antennas, filters, amplifiers, and other RF components.

Key Features & Highlights

• Wide Frequency Range: 9 kHz to 6 GHz for versatile testing capabilities.
• High Dynamic Range: 120 dB ensures accurate measurement of high- and low-level signals.
• Fast Measurement Speed: Up to 1000 sweeps per second for rapid characterization.
• Intuitive Touchscreen Interface: Simplifies operation and reduces training time.
• Built-in Calibration Routines: Ensure accuracy and repeatability without external equipment.
• Optional External Calibration Kits: Extend frequency range and enhance accuracy for specialized applications.

Applications

The Keysight N9923A/106 is ideal for a variety of RF and microwave measurement tasks, including:

• Antenna characterization and tuning
• Filter design, testing, and validation
• Amplifier and mixer analysis
• Material characterization and impedance measurement
• Return loss, insertion loss, and VSWR measurements

Whether in the lab or on the production floor, the Keysight N9923A/106 delivers the performance and reliability you need to ensure product quality and accelerate development cycles.
