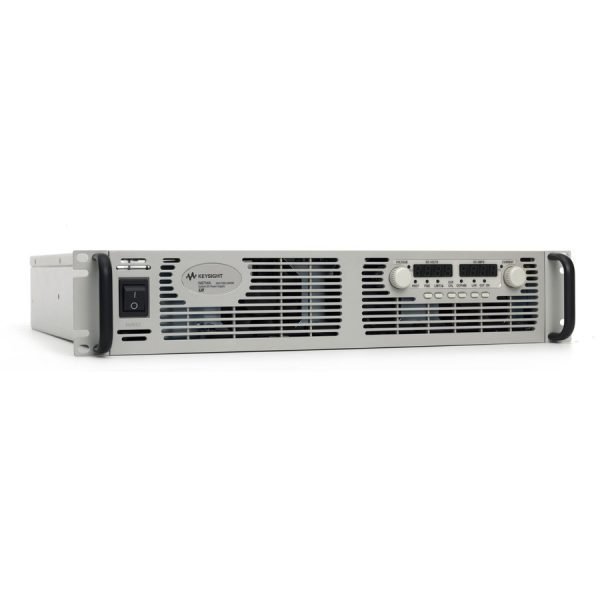

Keysight N8754A/N8751A-208/N8751A-861 DC Power Supply
The Keysight N8754A/N8751A-208/N8751A-861 is a high-performance single-output DC power supply from the N8700 Series, delivering up to 20 V, 250 A, and 5 kW of power. Designed for demanding industrial and automotive testing applications, this power supply combines high power density with precise voltage and current control, ensuring reliable and efficient operation in a compact 2U form factor.
Key Features & Highlights
- High Power Density: 5 kW output in a space-saving 2U rack-mount package, with front, side, and rear air vents for flexible stacking.
- Precise Control: Programming accuracy of 0.025% + 15 mV for voltage and 0.1% + 750 mA for current, with low ripple and noise (75 mV p-p, 10 mV rms).
- Comprehensive Protection: Full over-voltage and over-current protection to safeguard your DUT and the power supply.
- Remote Access: Built-in Web server for remote monitoring and control via standard browsers, plus LAN, USB, and GPIB interfaces for seamless integration.
- Flexible Configuration: Connect up to four units in parallel for higher current or two in series for higher voltage.
- Easy Front-Panel Operation: Rotary knobs and buttons for coarse/fine adjustments, with simultaneous voltage and current display and front-panel lockout.
- Analog Programming: Analog control and monitoring for external automation.
- Standard Drivers: IVI-COM drivers and SCPI support for easy programming.
Applications
This power supply is ideal for testing industrial equipment, automotive systems, battery charging, and other high-current, low-voltage applications. Its high power density and remote control capabilities make it suitable for automated test systems and R&D labs.
