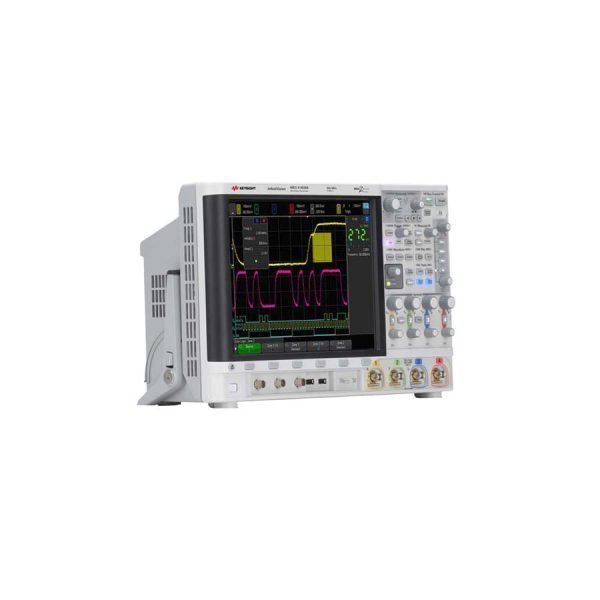

Keysight MSOX4104A Mixed Signal Oscilloscope
The Keysight MSOX4104A is a high-performance mixed signal oscilloscope from the 4000 X-Series, engineered for engineers and technicians who demand precision and versatility. With 4 analog and 16 digital channels, 1 GHz bandwidth, 5 GS/s sample rate, and 4 Mpts memory depth, this instrument provides comprehensive signal visibility for complex debugging and validation tasks.
Key Features & Highlights
- 4/16 Channels: Simultaneously capture and analyze up to 16 signals, offering a complete view of mixed-signal systems.
- 1 GHz Bandwidth: Accurately measure high-speed signals up to 1 GHz, ensuring reliable analysis of modern digital and RF designs.
- 5 GS/s Sample Rate: Capture fast transients with exceptional detail, enabling precise timing and waveform characterization.
- 4 Mpts Memory Depth: Store long acquisitions for deep signal inspection and extended time-domain analysis.
- Advanced Triggering: Edge, pulse width, and logic triggering isolate specific events, streamlining troubleshooting.
- Built-in Function Generator: Generate test waveforms without external equipment, simplifying setup and reducing cost.
- Intuitive User Interface: A responsive touchscreen and streamlined menus accelerate learning and daily operation.
Applications
This oscilloscope is ideal for embedded system design, power electronics analysis, and telecommunications testing. Its combination of analog and digital channels makes it a versatile tool for debugging mixed-signal circuits, validating serial protocols, and characterizing power integrity.
