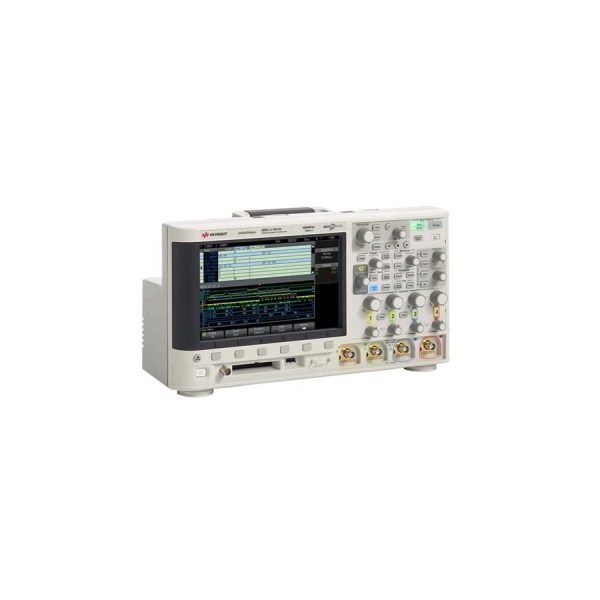

Keysight MSOX3034A Mixed Signal Oscilloscope, 350 MHz, 4/16 Channel

Keysight MSOX3034A Mixed Signal Oscilloscope: Precision and Versatility for Complex Signal Analysis

The Keysight MSOX3034A is a high-performance mixed signal oscilloscope (MSO) from the 3000 X-Series, designed to meet the rigorous demands of engineers and technicians. With its 4 analog and 16 digital channels, 350 MHz bandwidth, 4 GS/s sample rate, and 2 Mpts memory depth, this instrument provides exceptional signal visibility and measurement accuracy for a wide range of applications.

Key Features & Highlights

• 4/16 Channel Configuration: Simultaneously capture and analyze up to 16 signals (4 analog + 16 digital) for a comprehensive view of mixed-signal designs.
• 350 MHz Bandwidth: Accurately measure high-frequency signals with excellent signal integrity.
• 4 GS/s Sample Rate: Capture fast transients and high-speed signals with high resolution.
• 2 Mpts Memory Depth: Store long acquisitions for detailed analysis and troubleshooting of intermittent faults.
• Advanced Triggering: Edge, pulse width, and pattern triggering to isolate elusive events.
• Intuitive Touchscreen Interface: Navigate menus and operate the oscilloscope efficiently, reducing setup time.
• 3000 X-Series Technology: Industry-leading signal integrity and measurement accuracy.

Typical Applications

The MSOX3034A is ideal for debugging and validating mixed-signal designs in industries such as aerospace, automotive, consumer electronics, and research. It is well-suited for tasks including:

• Embedded system design and debugging
• Serial bus analysis (I2C, SPI, UART, etc.)
• Power integrity measurements
• Signal integrity analysis
• Education and training in electronics

With its combination of high bandwidth, deep memory, and mixed-signal capability, the Keysight MSOX3034A is a valuable tool for engineers who require precise and efficient signal analysis.
