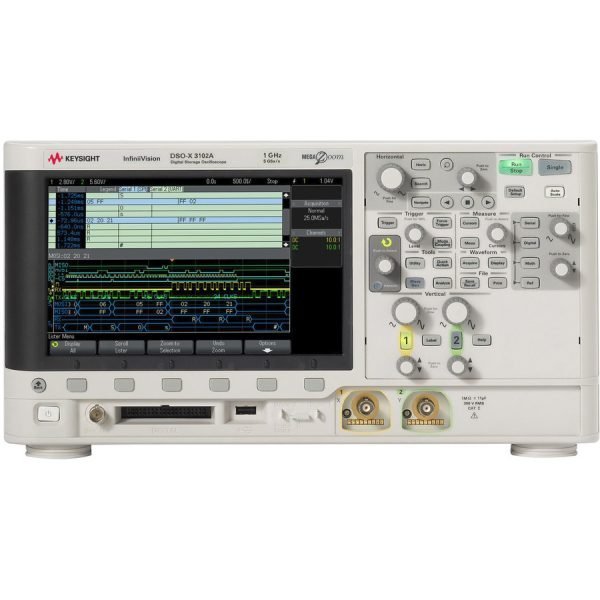

Keysight DSOX3102A Digital Oscilloscope: Precision and Performance for Advanced Signal Analysis
The Keysight DSOX3102A is a high-performance digital oscilloscope from the 3000 X-Series, engineered to deliver exceptional accuracy and versatility. With 2 channels, 1 GHz bandwidth, 5 GS/s sample rate, and 2 Mpts memory depth, this instrument is ideal for capturing and analyzing complex signals in a wide range of applications. Whether you’re debugging high-speed digital designs or characterizing analog circuits, the DSOX3102A provides the tools you need for reliable, repeatable measurements.
Key Features & Highlights
- 2 Channels with 1 GHz Bandwidth: Capture and analyze high-frequency signals with confidence.
- 5 GS/s Sample Rate: Ensure accurate representation of fast transients and high-speed signals.
- 2 Mpts Memory Depth: Acquire long time records without sacrificing resolution.
- Built-in WaveGen Waveform Generator: Generate arbitrary waveforms up to 20 MHz for stimulus-response testing.
- 3000 X-Series Measurement Applications: Access advanced analysis tools for serial decode, mask testing, and more.
- 10.1-inch Capacitive Touchscreen: Intuitive interface for efficient operation and quick navigation.
- Comprehensive Connectivity: USB, LAN, and GPIB interfaces for seamless integration into your test environment.
Applications & Use Cases
The Keysight DSOX3102A is well-suited for a variety of engineering and industrial applications, including:
- Embedded system design and debugging
- Power electronics testing and validation
- Automotive electronics diagnostics
- Research and development in academic and industrial labs
- Manufacturing test and quality assurance
With its combination of high bandwidth, deep memory, and versatile functionality, the DSOX3102A is a valuable investment for any engineer seeking to enhance their measurement capabilities.
