Keysight 16194A/701 High-Temp Component Fixture with Short Bars

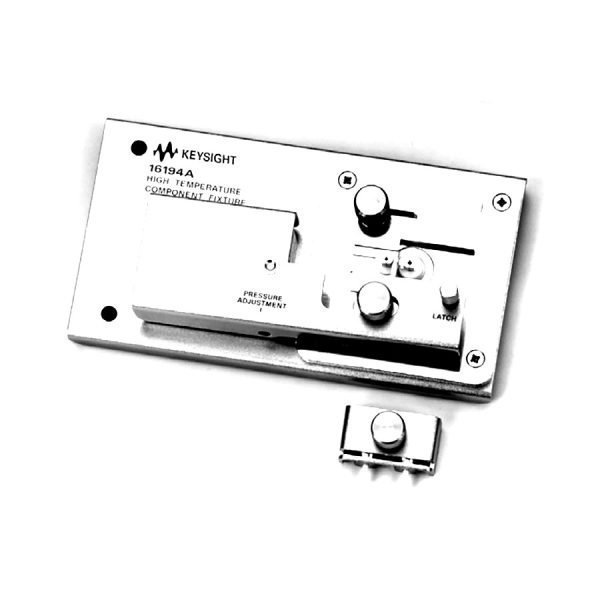

Keysight 16194A/701 High Temperature Component Fixture with Short Bars Set

The Keysight 16194A/701 High Temperature Component Fixture with Short Bars Set is an essential accessory for engineers and technicians who need to characterize components under extreme thermal conditions. Designed for the 16194 Series, this fixture provides a stable and reliable platform for testing at temperatures ranging from -55°C to 300°C, ensuring accurate and repeatable measurements in high-temperature environments.

Key Features & Highlights

• Wide Temperature Range: Operates from -55°C to 300°C, enabling thermal stress testing of components.
• Short Bars Set: Includes short bars for precise positioning and secure connections, ideal for testing small components.
• High-Temperature Probe Tips: Equipped with probe tips designed for accurate measurements at elevated temperatures.
• Rugged Construction: Built to withstand demanding industrial environments, ensuring long-term durability.
• Easy-to-Use Interface: Facilitates quick setup and efficient testing workflows.

Specifications

• Temperature Accuracy: ±1°C
• Temperature Stability: ±0.5°C
• Maximum Current: 10A
• Maximum Voltage: 100V
• Dimensions: 150mm x 100mm x 50mm
• Weight: 1kg

What’s in the Box

• 16194A/701 High Temperature Component Fixture
• Short bars set
• High-temperature probe tips
• User manual

Applications

This fixture is ideal for semiconductor testing, electronic component characterization, and any application requiring reliable measurements under thermal stress. It is widely used in research labs, quality control, and production testing environments where accuracy and repeatability are critical.

With the Keysight 16194A/701, you can confidently test components at extreme temperatures, ensuring they meet performance specifications in real-world conditions.
