Keysight 16192A/701/710 Parallel Electrode SMD Test Fixture
The Keysight 16192A/701/710 Parallel Electrode SMD Test Fixture is a precision tool designed for accurate testing and inspection of surface-mount devices (SMDs). Engineered for industrial reliability, this fixture provides stable contact and alignment, ensuring consistent measurement results. With a contact resistance of less than 10 mΩ and insulation resistance greater than 100 MΩ, it delivers dependable performance for demanding applications.
Key Features & Highlights
- Parallel Electrode Design: Ensures precise alignment and contact with the device under test (DUT) for reliable measurements.
- Built-in Magnifying Lens: Facilitates easy viewing and inspection of small SMD components.
- Included Tweezers: Allows safe handling of delicate devices during setup and testing.
- Short Bar Set: Provides calibration and verification capabilities for accurate impedance measurements.
- Low Contact Resistance (<10 mΩ): Minimizes measurement errors and ensures signal integrity.
- High Insulation Resistance (>100 MΩ): Prevents leakage currents and maintains measurement accuracy.
- Low Capacitance (<1 pF) and Inductance (<1 nH): Suitable for high-frequency impedance testing.
- Versatile Compatibility: Accommodates a wide range of SMD sizes and pitches.
Applications
This test fixture is ideal for use in electronics manufacturing, quality control, and R&D laboratories. It is commonly used for testing capacitors, resistors, inductors, and other passive components in surface-mount packages. The fixture is also valuable for failure analysis and circuit board debugging, where precise measurements are critical.
What’s in the Box

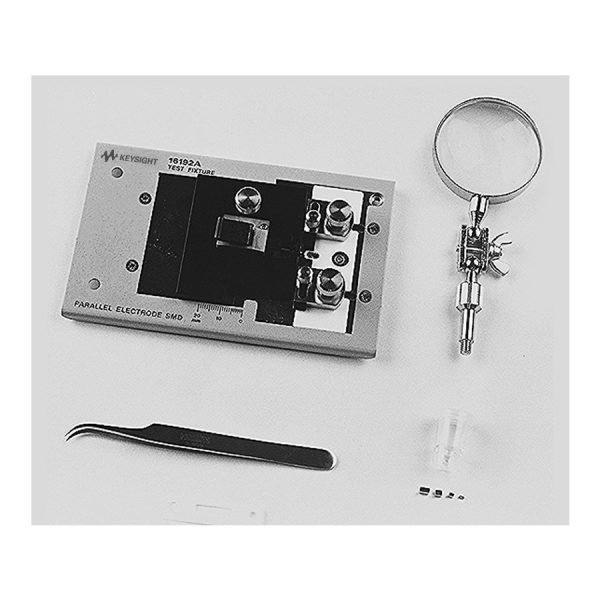

- Keysight 16192A/701/710 Parallel Electrode SMD Test Fixture
- Short bar set
- Magnifying lens
- Tweezers
