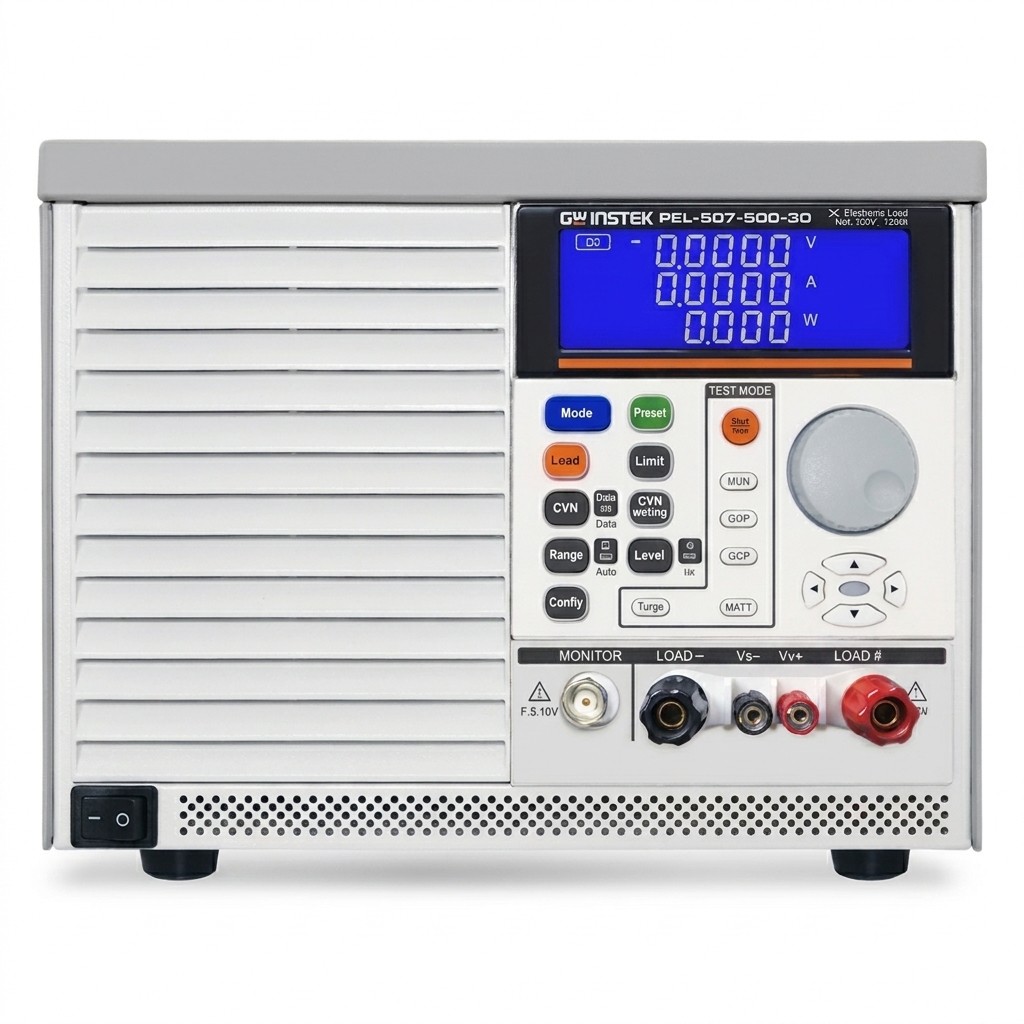

Instek PEL-507-500-30 Programmable DC Electronic Load, 700W, 500V/30A

Instek PEL-507-500-30 Programmable DC Electronic Load

The Instek PEL-507-500-30 is a high-performance programmable DC electronic load designed for rigorous testing of power supplies, batteries, and other DC sources. With a robust 700W power rating, wide 500V/30A input range, and multiple operating modes, this load delivers the flexibility and precision required for R&D, production, and service applications.

Key Features & Highlights

• High Power Density: 700W capacity in a compact form factor saves bench space.
• Wide Operating Range: 0-500V and 0-30A cover a broad spectrum of test scenarios.
• Multiple Modes: Constant Current (CC), Constant Voltage (CV), Constant Power (CP), and Constant Resistance (CR) modes for versatile testing.
• List Mode: Create and execute custom load profiles to simulate real-world conditions.
• Fast Transient Response: <100µs response time captures dynamic load changes accurately.
• High Measurement Accuracy: ±0.1% ensures dependable, repeatable results.
• Remote Control Interfaces: RS-232, USB, and GPIB enable automated test setups and data logging.
• Intuitive User Interface: Front panel and software simplify operation and configuration.

Applications

Ideal for power supply testing, battery discharge and characterization, fuel cell evaluation, DC-DC converter validation, and automotive electronics testing. The PEL-507-500-30 is a reliable tool for engineers and technicians in electronics manufacturing, renewable energy, and research laboratories.
