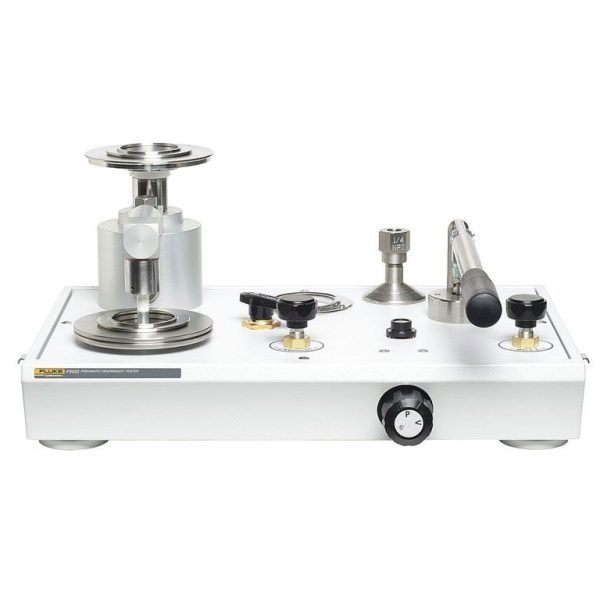

The Fluke Pressurements P3023-MBAR-P pneumatic deadweight tester is designed for high-accuracy pressure calibration, with performance better than 0.015% of reading and an optional 0.008% specification. Its pressure generation and leveling features support reliable work in laboratories and field service.
Key specifications
- Accuracy better than 0.015% of reading; optional 0.008% upgrade
- Pressure range from vacuum to 2,000 psi (140 bar)
- Units available in psi, bar, kgf/cm², kPa, and MPa
- Air-operated system with optional hand pumps
- Stable piston/cylinder assembly for repeatability
- Fine-control needle valves
- Spirit level and adjustable feet for correct leveling
- Tool-free O-ring test station
- Portable case with weight box and carrying handles
Recommended applications
Suitable for calibrating pressure gauges, transmitters, and sensors in calibration laboratories, manufacturing, aerospace, automotive, pharmaceutical, and process-control environments. Confirm the exact pressure range and configuration before ordering.
