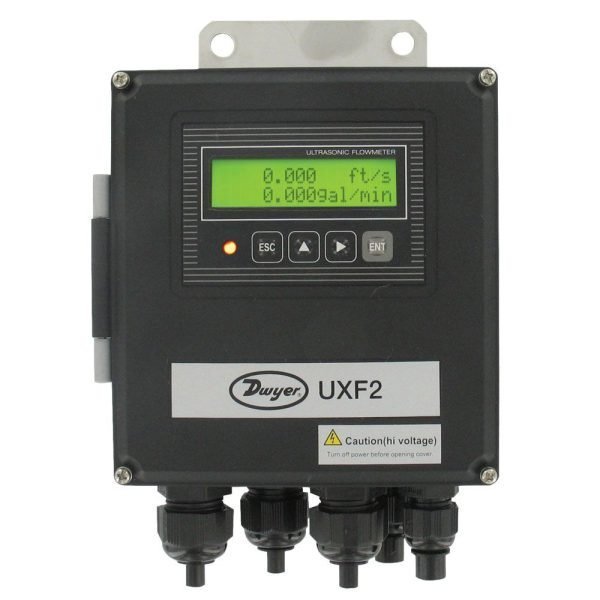

The Dwyer Instruments UXF2-32P1 is a clamp-on ultrasonic flowmeter designed for permanent installation in industrial processes. Utilizing the transit-time measuring method with Series SX3 detectors, it provides accurate flow measurement for clean liquids without air bubbles, such as pure water. This flowmeter is ideal for integration into mechanical devices due to its compact and lightweight design.
Key Features & Highlights
- Clamp-on design for non-invasive installation on pipe exteriors
- Velocity range: 0.5 to 100 feet per second
- Pipe size compatibility: 1/2 to 32 inches
- Output: 4-20 mA analog signal
- Communication: Modbus RTU and RS-232
- High-speed transit time processor with 0.2-second system cycle for short batch processes
- Sound velocity measurement system unaffected by fluid temperature and pressure
- Compact and lightweight design for easy integration
- Easy operation via external keypads
- Plastic housing with IP65 rating
- Power supply: 20 to 30 VDC
Applications
The UXF2-32P1 is suitable for a wide range of industrial applications, including water treatment, HVAC, chemical processing, and any process requiring reliable flow measurement of clean liquids. Its clamp-on design allows for quick installation without cutting pipes or interrupting flow, making it a versatile choice for retrofits and permanent installations.
