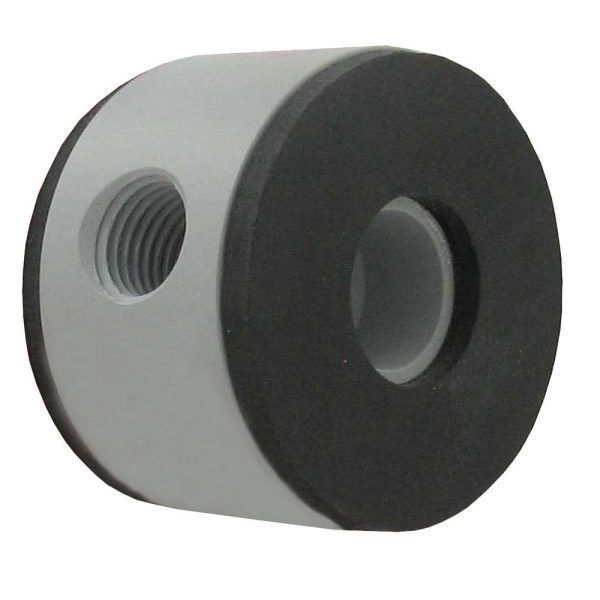

The Dwyer Instruments PE-Q-2 Flowmeter is part of the Dwyer range of flow measurement instruments, built for flow measurement in the field or laboratory. Highlights: the Series PE Orifice Plate.
- The Series PE Orifice Plate
- Flowmeter offers one-piece PVC construction incorporating a unique holder or carrier ring containing metering taps and integral gaskets
- Unlike a standard orifice plate, the
- Series PE is a true primary element including the various components for differential pressure measurement
- It was designed for use wherever there is an application for a conventional flow orifice plate
- It can also be used in place of other primary differential producers for efficiency and cost effectiveness
- The Series PE is available in line sizes from 1/2 to 24 and used for air and most gases
- It meets or exceeds ASME, AGA @ ISO standards
- Mounted with standard flanges Standard corner tap configuration
- Corrosion free material Simplified installation
- Built in metering taps (1/4 female NPT STD)
- Proven through a wide range of applications for accuracy and energy efficiency
- Assures long term reliability and accuracy
- Excellent chemical resistance Weather resistant
- Flame retardant (without factory gaskets)
- Low friction (minimum wear) Orifice plate thickness
- 1/4 offering greater stability 16 line size
- 7.600 bore 0.5 Beta water capacity:
- W/C, 2038.95 GPM flow air capacity:
- 7264.58 SCFM @ 14.7 psia, 11688.26 SCFM @ 20 psig, 21764.08 SCFM @ 100 psig 10 lb
