Dwyer Instruments IF2712 Flowmeter Overview

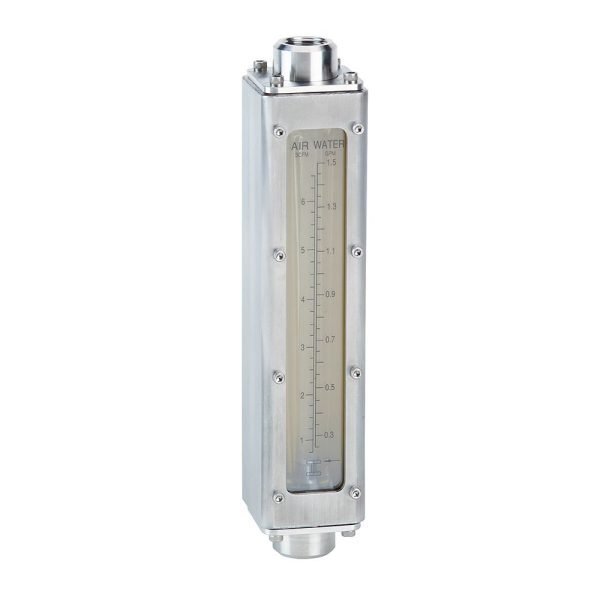

The Dwyer Instruments IF2712 is an industrial direct-reading flowmeter in a brushed stainless steel case. It provides direct flow measurement for water and air service and uses female NPT end fittings for in-line installation.
Applications and Selection
Choose the IF2712 for industrial flow measurement where a protected, clear display and direct reading are preferred. The detachable polycarbonate front shield supports operation at the rated temperature and pressure.
Technical Information
- Water flow capacity: up to 116 GPM (439 lpm)
- Air flow capacity: up to 250 SCFM (7080 lpm)
- IF2712 flow rate: 14 GPM (50 LPM) water and 62 SCFM (1800 LPM) air
- Pressure drop: 24 in. w.c.
- Connection: 1 female NPT
- Brushed stainless steel case and clear 3/16 in. polycarbonate shield
Request a Quotation
Contact Indomultimeter for a quotation on the Dwyer Instruments IF2712 Flowmeter and confirm the service and connection details.
