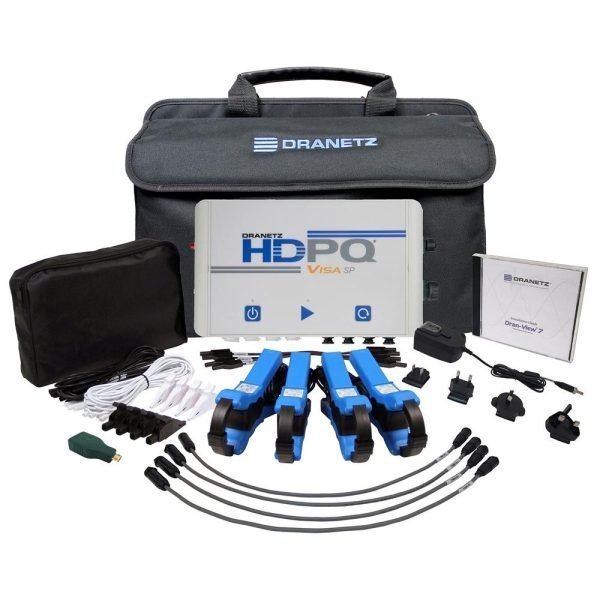

The Dranetz HDPQ-SPVA500PKG Power Analyzer is a comprehensive power quality monitoring solution designed for industrial and commercial applications. It goes beyond standard PQ requirements by offering advanced transient capture capabilities for both voltage and current, ensuring you can identify and analyze even the most subtle power disturbances. With its rugged IP65 enclosure and arc flash safety ratings, this analyzer is built for demanding environments.
Key Features & Highlights
- High-Definition PQ & Energy Monitoring: 1000Vrms AC/DC, 512 samples/cycle for precise measurement.
- Transient Capture: High-speed digitized transients to 1μs, up to 2000Vpk, with 10,000 cycle pre/post trigger buffer.
- 8 Channels: 4 voltage and 4 current inputs for comprehensive analysis.
- Standards Compliance: IEC 61000-4-30 Class A, IEEE 1159, IEC 61000-4-7, IEEE 519, and EN 50160 Ed 3.
- Automatic Event Categorization: AnswerModules identify sag directivity, PF capacitor issues, motor events, and more.
- Advanced Power Measurements: Includes IEEE 1459 for accurate power calculations.
- Remote Connectivity: Ethernet, USB, optional Bluetooth, VNC for full remote control, and Apple/Android apps for real-time metering.
- User-Friendly Interface: Automatic setups, mini-reports, screen snapshots, and XML file export.
- Dran-View 7 Software: Comprehensive data analysis and reporting.
Applications
This power analyzer is ideal for energy consumption monitoring, harmonic analysis, power factor measurement, and voltage/current monitoring in commercial buildings and industrial facilities. It supports data logging and remote monitoring, making it a valuable tool for energy management and power quality assessment.
