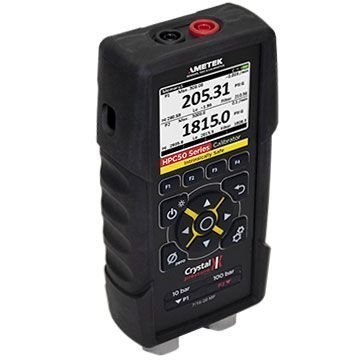

The Crystal Engineering HPC52 Pressure Calibrator is a high-performance, intrinsically safe dual pressure calibrator designed for demanding industrial environments. With an accuracy of 0.035% of reading, it delivers precise pressure measurements for gauge, absolute, and differential pressure up to 15,000 psi (1000 bar / 100 MPa). The HPC52 combines the proven features of the HPC40 with enhanced battery life, an improved display, an additional external module connection, and full temperature compensation from -20 to 50°C for pressure, temperature, and electrical measurements.
Key Features & Highlights
- Intrinsically Safe Design: Certified for use in hazardous areas, ensuring safety in explosive atmospheres.
- Dual Pressure Capability: Measures two pressures simultaneously, with options to add two external pressure or temperature modules for expanded functionality.
- High Accuracy: 0.035% of reading accuracy for reliable, precise calibration.
- Versatile Pressure Types: Supports gauge, absolute, and differential pressure measurements.
- Advanced Simplicity: Non-menu interface for intuitive operation, reducing training time and errors.
- Electrical Measurement: Measure sink mA and V, ideal for loop calibration and troubleshooting.
- High-Accuracy Thermometer: True ohm technology ensures accurate temperature readings.
- Store & Recall: Save and recall previously used screens for quick access to common setups.
- Complete Kit: Includes test lead kit, protective boot, and mini-USB cable for data transfer.
Typical Applications
The HPC52 is suitable for a wide range of calibration tasks in industries such as oil and gas, chemical processing, pharmaceutical manufacturing, and power generation. It is ideal for calibrating pressure transmitters, switches, gauges, and other pressure-sensing devices in the field or in the lab. Its intrinsic safety rating makes it particularly valuable for use in hazardous environments where explosive gases or vapors may be present.
