Compliance West MP-1.2X50-10P-PV PV Impulse Tester, 10kV, 12Ω

Compliance West MP-1.2X50-10P-PV Photovoltaic Impulse Tester

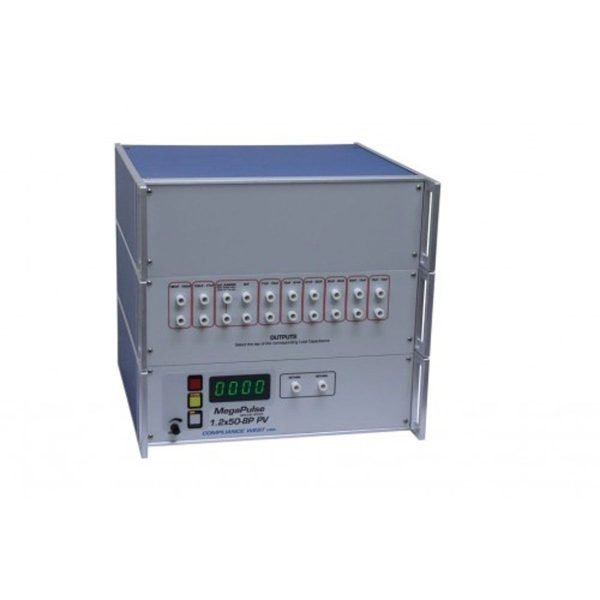

The Compliance West MP-1.2X50-10P-PV is a specialized high-voltage impulse tester designed for the rigorous testing of photovoltaic (PV) panels. It delivers a precise 1.2×50 µs waveform, corrected for panel capacitance, ensuring accurate and repeatable surge testing. With an output capability of up to 10,000V peak and a virtual impedance of 12 ohms, this instrument meets the demanding requirements of PV module certification and quality assurance.

Key Features & Highlights

• 1.2×50 µs waveform – Compliant with surge testing standards, corrected for PV panel capacitance.
• High voltage output – Up to 10,000V peak for comprehensive insulation testing.
• Virtual impedance of 12 ohms – Ensures proper load matching for accurate results.
• Front panel waveform reversal – Allows polarity switching for thorough testing.
• 60-second pulse times – Facilitates extended test sequences.
• Capacitance compensation – Provides correct waveform for panels from 10 to 100 nF; taps for 100-180 nF are reference only.
• Computer control via TestMinder – Optional software enables automated long-duration test sequences.
• Calibration included – NIST traceable calibration standard; A2LA calibration available as an option.
• 1-year warranty – Backed by Compliance West reliability.

Applications

The MP-1.2X50-10P-PV is ideal for photovoltaic panel manufacturers, testing laboratories, and quality assurance teams. It is used to verify the insulation integrity and surge withstand capability of PV modules, helping to ensure compliance with international safety standards. Its precision waveform and high voltage output make it an essential tool for R&D, certification testing, and production line testing.
