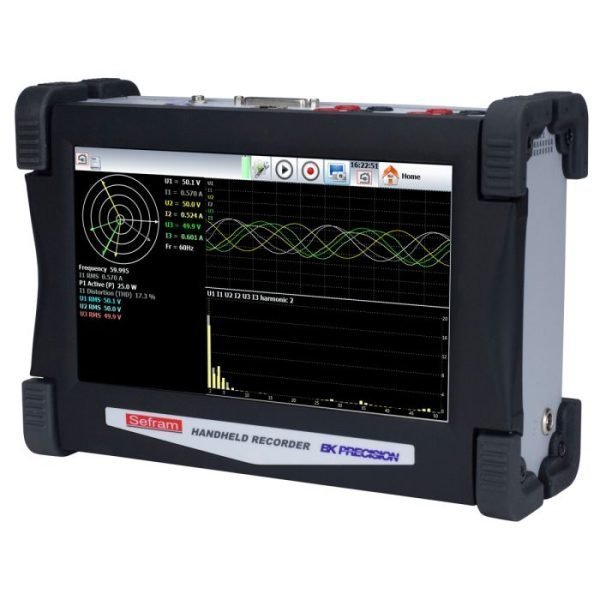

BK Precision DAS50-T Multifunction Data Logger, 6-Channel, 1 MSa/s

The BK Precision DAS50-T multifunction data logger is a versatile instrument designed for engineers and technicians who need to capture and analyze complex signals with precision. With a fast 1 MSa/s sample rate in memory mode and a 100 kHz bandwidth, it reliably records intermittent events and transient phenomena. The DAS50-T offers up to 6 universal analog channels with 14-bit resolution, 16 logic input channels, and support for thermocouples and Pt100/Pt1000 sensors, making it ideal for mixed-signal data acquisition in industrial, R&D, and field applications.

Key Features & Highlights

• High-Speed Sampling: 1 MSa/s sample rate (memory mode) and 100 kHz bandwidth ensure accurate capture of fast transients.
• Multi-Channel Flexibility: 2, 4, or 6 universal analog channels (14-bit resolution) plus 16 logic inputs for mixed-signal logging.
• Wide Measurement Range: Measure from 5 mV to 500 VDC and 424 VRMS, with CAT III 600 V rated isolated channels for safety.
• Temperature Measurement: Supports thermocouples and Pt100/Pt1000 RTDs for precise temperature logging.
• Large Touchscreen Display: 10-inch TFT touchscreen for intuitive setup and real-time waveform viewing.
• Built-in Storage: 32 GB solid-state memory (DAS50) for extended data logging sessions.
• Connectivity: 2 USB host ports and LAN interface for data transfer and remote control; VNC support for virtual networking.
• Portable & Rugged: Battery life up to 9.5 hours, rugged carrying case, and optional integrated thermal printer (P models).
• Included Software: Free PC software for instrument control, data analysis, and report generation.

Applications

The DAS50-T is well-suited for a variety of applications, including:

• Electrical and electronic equipment testing
• Temperature profiling and environmental monitoring
• Power supply characterization and load testing
• Automotive and aerospace component validation
• Research and development laboratories
• Field service and maintenance troubleshooting

Each unit includes CAT III sheathed banana cables with alligator clips per channel, bare wire to banana adapters, a rugged carrying case, AC mains adapter, 25-pin male connector and backshell, soft wipe stylus, screwdriver, and thermal printer paper (P models).
