Amprobe UAT-620 Cable Locator with Signal Clamp, 20 ft Depth

Amprobe UAT-620 Cable Locator

The Amprobe UAT-620 is a comprehensive underground utility locator kit from the UAT-600 Series, designed for professionals who need to accurately pinpoint buried cables and pipes before digging. This cable locator combines a powerful transmitter and receiver with a signal clamp, offering multiple tracing modes and robust construction for demanding job sites. With a depth measurement capability of up to 20 feet and a CAT IV 600 V safety rating, the UAT-620 ensures both efficiency and safety when locating energized or de-energized utilities.

Key Features & Highlights

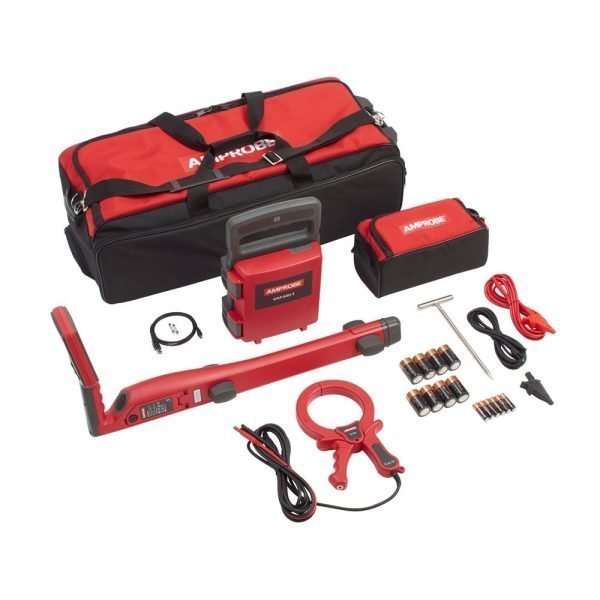

• Complete Kit: Includes UAT-600-R Receiver, UAT-600-T Transmitter, SC-600 Signal Clamp, test leads, carrying case, batteries, and fuses.
• Multiple Tracing Modes: Passive power (50/60 Hz), passive radio (RF), and active modes with induction, direct connection, or clamp for versatile applications.
• Accurate Depth Measurement: Measures depth up to 20 ft (6 m) with semi-automatic gain control for precise signal adjustment.
• Signal Clamp Included: Safely induces a signal on cables without electrical contact, ideal for insulated or inaccessible conductors.
• Rugged & Reliable: IP54 water and dust resistance, drop-proof to 3.28 ft (1 m), and high-contrast display with auto backlight for outdoor visibility.
• Safety Rated: CAT IV 600 V ensures safe operation when working near energized cables.
• Optional Ground Fault Locating: Compatible with AF-600 A-Frame accessory for pinpointing ground faults.

Applications

The Amprobe UAT-620 is ideal for electricians, contractors, and utility crews involved in:

• Locating energized 50/60 Hz cables carrying current
• Tracing metallic utilities such as pipes and cables (energized or de-energized)
• Identifying non-metallic pipes by inserting metal fish tape
• Pre-excavation utility verification to avoid costly damage
• Ground fault locating with optional A-Frame accessory

Whether you’re working on residential, commercial, or industrial projects, the UAT-620 provides the accuracy and durability needed to get the job done safely.
