Product Overview

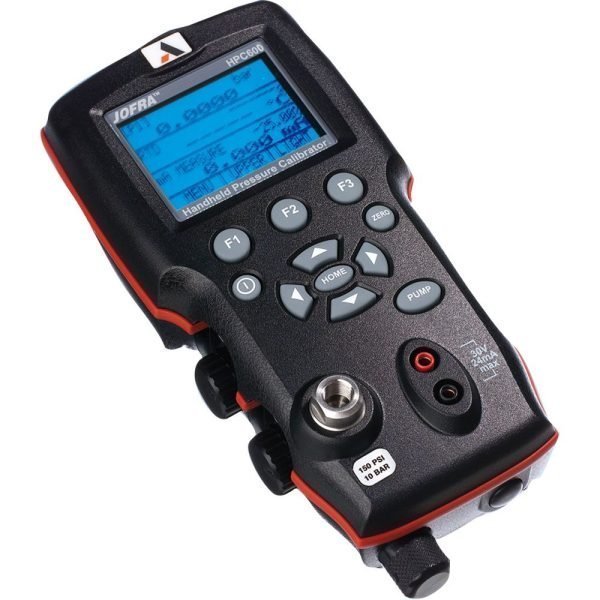

The Ametek Jofra HPC600002AGXXXIND is a precision pressure calibrator designed for demanding industrial applications. With an accuracy of ±0.025% of reading and 0.01% FS, this calibrator delivers reliable measurements across a wide range from vacuum to 10,000 PSI. Its integral pump and portable design make it a versatile tool for field and laboratory use.
Key Features & Highlights
- Accuracy: ±0.025% of reading, 0.01% FS
- Pressure ranges: vacuum to 10,000 PSI
- Integral pump for pressure generation
- Resolution to 0.0001 PSI (range dependent)
- Temperature probe input on HPC600
- JOFRA ASM module compatibility for extended ranges
- User-configurable graphical display
- RS-232 interface for data communication
- System configurations available, including pump and carrying case
- JOFRACAL software compatibility
Applications
This pressure calibrator is suitable for calibrating pressure gauges, transmitters, and switches in industries such as oil and gas, pharmaceutical, manufacturing, and maintenance. Its portability and high accuracy make it ideal for on-site calibration and verification tasks.
What’s Included
- HPC600 calibrator
- Padded soft carrying case
- Traceable calibration certificate (NIST) with pressure, vacuum, and electrical performance
- 8 x 1.5 volt batteries
- Adapter to 1/4” NPT female from 1/8” NPT male
- Adapter to 1/4” BSP female from 1/8” NPT male
- Quick connector set and 1 meter / 3 feet hose
- Test leads: red and black
- User manual
