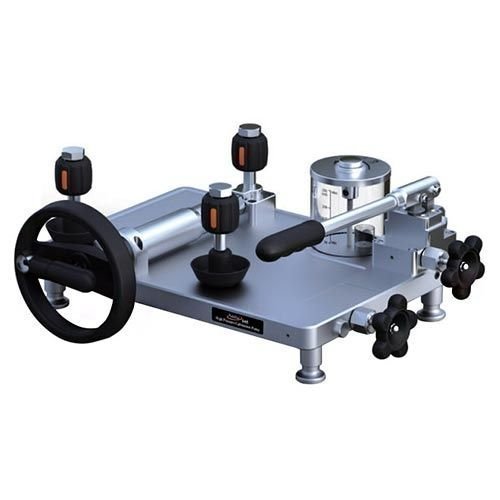

Additel ADT946A Pressure Pump

The Additel ADT946A Pressure Pump is part of the Additel range of pressure generation instruments, built for pressure generation in the field or laboratory. Highlights: the Additel ADT 946 Hydraulic High Pressure Test Pump is a bench top pressure pump.

• The Additel ADT 946 Hydraulic High Pressure Test Pump is a bench top pressure pump designed to generate pressure to 15,000 psi (1,000 bar)
• This pump incorporates a dual-piston system which is ideal for filling large volume workload with the hand pump and providing smooth increase and decrease of pressure with the high pressure, fine adjust screw press
• The ADT 946 test pump incorporates an isolation valve which isolates the calibration volume from the check valve associated with the hand pump
• Because the check valve can often be a source of leaks and maintenance, the isolation valve provides more stable measurements and reduces potential maintenance of the pump
• Three hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches
• Additel ADT 946 is an ideal comparison test pump for calibrating pressure measuring instruments such as test gauges, indicators or transducers
• Pressure range:
• 0 psi to 15,000psi (1,000bar) Dual-piston pump to fill large volume systems
• Patented screw press technology eliminates non-returning valve usually used on troublesome hand pumps
• High pressures can be generated easily, as well as increased and decreased smoothly
• Three hand-tight quick connectors allows easy connecting and disconnecting to the test pump
• mineral oil or deionized water (by request) Fine adjust piston:
• 1.5 ml Material of construction:
• Ram/adapters:
• stainless steel, Body:
• stainless steel/aluminum, copper, Seals:
• Buna-N Durable and requires minimal maintenance
