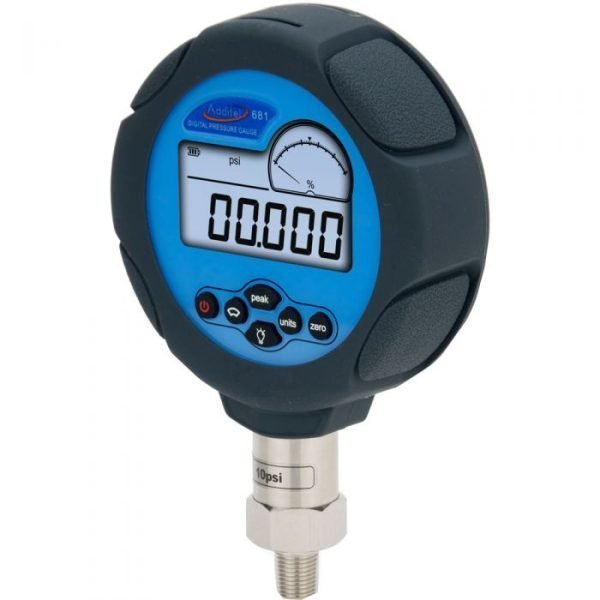

Additel ADT681IS-10-GP36K-PSI-AM Intrinsically Safe Digital Pressure Gauge, 0.1% FS, 36,000 psi

Additel ADT681IS-10-GP36K-PSI-AM Intrinsically Safe Digital Pressure Gauge

The Additel ADT681IS-10-GP36K-PSI-AM is a high-performance, intrinsically safe digital pressure gauge engineered for demanding industrial applications. With a pressure range of 36,000 psi and an accuracy of ±0.1% full span, this gauge delivers reliable and precise measurements in hazardous areas. Certified to ATEX, CSA US, and IECEx standards, it ensures safe operation in explosive atmospheres.

Key Features & Highlights

• Pressure range up to 36,000 psi (2,500 bar)
• Accuracy: ±0.1% full span
• Intrinsically safe: ATEX, CSA US, and IECEx certified
• IP67 rated: dust-tight and submersible in 1 meter of water
• Fully temperature compensated from -10°C to 50°C
• Large, backlit display with 5-digit resolution
• Fan-shaped graph scale for visual pressure indication
• Data logging capability: stores up to 21,843 records with date, time, pressure, and temperature
• NIST traceable calibration included
• Multiple pressure units selectable

Applications

This intrinsically safe digital pressure gauge is ideal for use in oil and gas, chemical processing, pharmaceutical, and other industries where hazardous environments require certified equipment. It is suitable for measuring positive pressure in pipelines, vessels, and hydraulic systems, and can be used for calibration and process monitoring.
