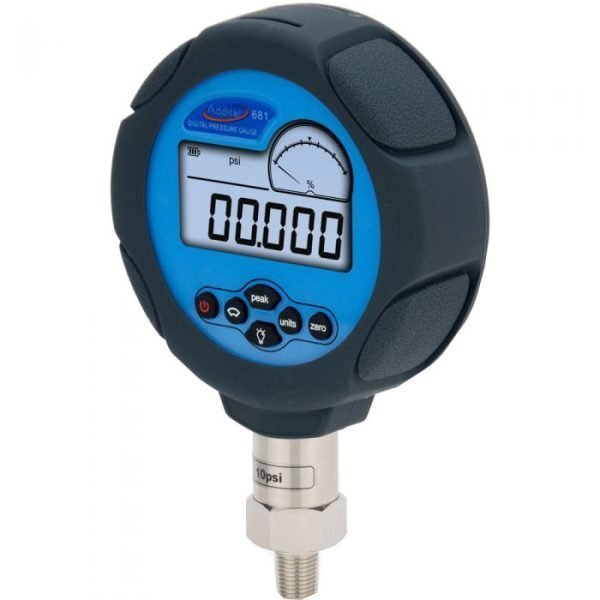

The Additel ADT681-02-CP30-BAR-N2-PB-DL is a precision digital pressure gauge from the ADT681 series, engineered for accuracy and reliability in industrial pressure measurement. With an outstanding 0.02% full span accuracy, this gauge delivers exceptional performance for calibration, testing, and process monitoring applications. The gauge is fully temperature compensated from -10°C to 50°C, ensuring consistent accuracy across a wide range of environmental conditions.
Key Features & Highlights
- Pressure range: 30 psi (2 bar) with 0.02% FS accuracy
- Large, easy-to-read 5-digit backlit display with fan-shaped graph scale for visual reference
- Fully temperature compensated accuracy from -10°C to 50°C (14°F to 122°F)
- Up to eleven selectable pressure units
- Display flash warning when pressure exceeds 120% of full scale
- NIST traceable calibration with data included
- 9V battery power or optional AC adapter
- Data logging capability (up to 21,843 records with date, time, pressure, and temperature)
- Panel mount option available (back-mounted pressure port)
- Intrinsically safe version (681IS) available for hazardous areas
Applications
The ADT681-02-CP30-BAR-N2-PB-DL is ideal for a wide range of pressure measurement tasks, including calibration of pressure instruments, leak testing, hydraulic and pneumatic systems, and general industrial process monitoring. Its high accuracy and robust design make it suitable for use in laboratories, manufacturing facilities, and field service applications.
