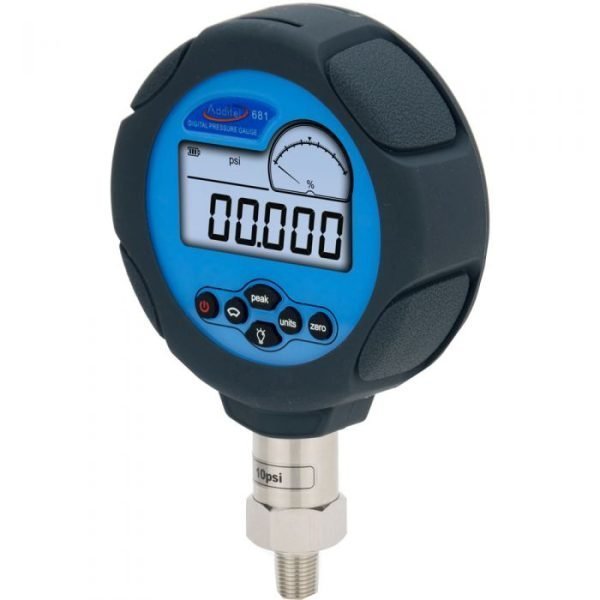

Additel ADT681-05-DP2-BAR-DL Digital Pressure Gauge
The Additel ADT681-05-DP2-BAR-DL is a high-accuracy digital pressure gauge designed for demanding industrial applications. With 0.05% full-scale accuracy and pressure ranges up to 60,000 psi (4,200 bar), this gauge delivers precise and reliable measurements. Its advanced microprocessor technology and state-of-the-art silicon pressure sensors ensure exceptional performance, while the fully temperature-compensated design maintains accuracy across a wide range of environmental conditions.
Key Features & Highlights
- 0.05% full-scale accuracy (ADT681-05)
- Pressure ranges up to 60,000 psi (4,200 bar)
- Fully temperature compensated from -10°C to 50°C (14°F to 122°F)
- Large, easy-to-read display with 5-digit resolution and backlight
- Fan-shaped graph scale for visual pressure indication
- Up to eleven selectable pressure units
- Display flash warning when pressure exceeds 120% of FS
- Data logging capability (up to 21,843 records with date, time, pressure, and temperature)
- Intrinsically safe version (ADT681IS) with IP67 rating (dust-tight and submersible in 1 meter of water)
- Panel mount and bottom mount options available
- NIST traceable calibration with data included
- Powered by 9V battery or optional AC adapter
Applications
The ADT681-05-DP2-BAR-DL is suitable for a wide range of pressure measurement tasks in industrial settings, including hydraulic systems, pneumatic systems, process control, and calibration laboratories. Its rugged construction and high accuracy make it ideal for both field and bench use. The optional intrinsically safe model is certified for hazardous areas (ATEX, CSA US & IECEx), expanding its applicability to oil and gas, chemical, and other explosive environments.
