Vitrek V74 Hipot Tester | AC/DC, IR, Ground Bond, 20-5000 VDC

Vitrek V74 Hipot Tester: Comprehensive Electrical Safety Testing

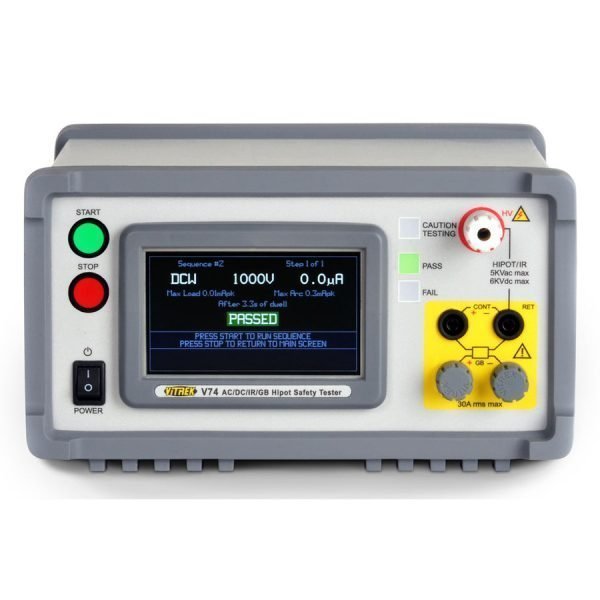

The Vitrek V74 Hipot Tester is a versatile, multi-function instrument designed for rigorous electrical safety testing. Combining AC/DC hipot, insulation resistance (IR), and ground bond testing in one unit, the V74 simplifies compliance testing for manufacturers, service technicians, and quality assurance labs. With a wide voltage range of 20-5000 VDC and a user-friendly color touch LCD, it delivers accurate, repeatable results for a variety of applications.

Key Features & Highlights

• Wide Voltage Range (20-5000 VDC): Supports testing of low-voltage components to high-voltage systems, ensuring flexibility across diverse test requirements.
• AC/DC Hipot Testing: Perform both AC and DC withstand voltage tests to evaluate insulation integrity under different stress conditions.
• Insulation Resistance (IR) Testing: Measures insulation resistance up to 1000 GΩ, providing critical data on insulation quality and degradation.
• Ground Bond Testing: Verifies the integrity of grounding connections, essential for user safety and compliance with electrical standards.
• Color Touch LCD: Intuitive interface with clear data visualization, simplifying test setup and result interpretation.
• Data Logging & Storage: Records test results for traceability, analysis, and reporting, enhancing quality control processes.
• Safety Features: Built-in interlocks and audible alarms protect operators during high-voltage testing.

Applications

The Vitrek V74 is ideal for electrical safety testing in industries such as manufacturing, electronics, automotive, and aerospace. It is well-suited for production line testing, incoming inspection, and routine maintenance of electrical equipment, ensuring compliance with safety standards and reducing the risk of electrical failures.
