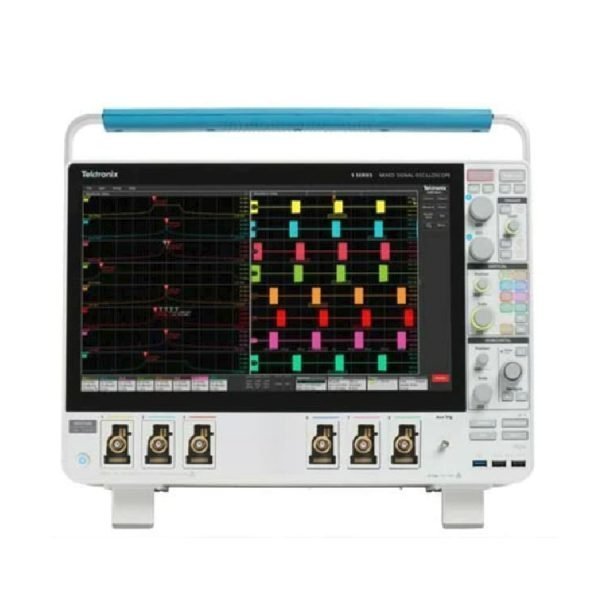

The Tektronix MSO56B/5-BW-500 Mixed Signal Oscilloscope is a high-performance 6/48-channel digital oscilloscope designed for engineers and technicians who demand precision and versatility. With 500 MHz bandwidth and 6.25 GS/s sample rate, this instrument captures fast transients and high-frequency details with exceptional accuracy. The 12-bit vertical resolution ensures precise signal measurements, while the intuitive 5 Series B MSO platform provides a comprehensive suite of analysis tools.
Key Features & Highlights
- 6/48 Channels: Simultaneously acquire and analyze up to 6 analog and 48 digital signals for comprehensive system debugging.
- 500 MHz Bandwidth: Capture high-frequency signals with confidence, ideal for modern electronic designs.
- 6.25 GS/s Sample Rate: Accurately represent fast transients and ensure reliable waveform reconstruction.
- 12-bit Vertical Resolution: Reveal fine signal details and improve measurement accuracy.
- Wave Inspector® Technology: Simplify waveform navigation and analysis, making it easier to find and inspect events of interest.
- Advanced Triggering: Capture elusive events with a wide range of trigger modes, including pulse width, runt, and setup/hold.
- Automated Measurements: Streamline your workflow with built-in measurement functions and report generation.
Applications
This oscilloscope is well-suited for a variety of demanding applications, including:
- Power electronics design and testing
- Embedded system development and debugging
- Automotive diagnostics and CAN/LIN bus analysis
- Aerospace and defense electronics validation
- Research and development in academic and industrial labs
Enhance your test and measurement capabilities with the Tektronix MSO56B/5-BW-500, a reliable and powerful tool that accelerates troubleshooting and boosts productivity.
