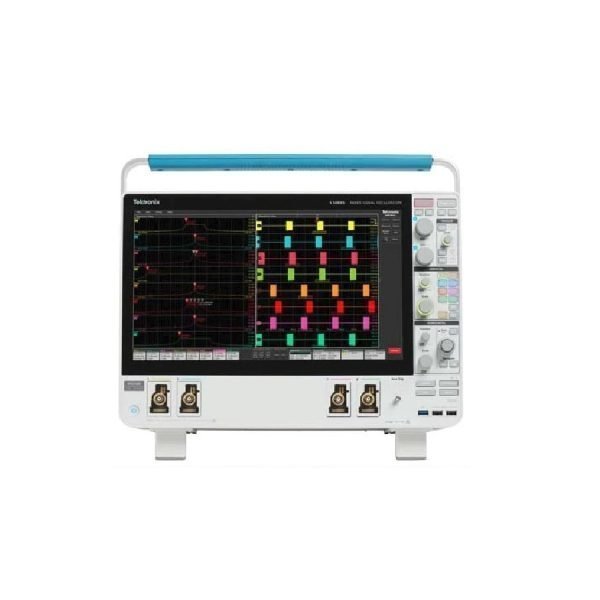

Tektronix MSO54B Mixed Signal Oscilloscope (5-BW-1000)
The Tektronix MSO54B with 5-BW-1000 bandwidth option is a high-performance mixed signal oscilloscope designed for engineers and technicians who demand precision and versatility. With 4 analog and 32 digital channels, 1 GHz bandwidth, and 6.25 GS/s sample rate, this instrument provides comprehensive signal analysis capabilities for a wide range of applications.
Key Features & Highlights
- 4/32 Channels: Four analog channels and 32 digital channels for mixed-signal debugging and validation.
- 1 GHz Bandwidth: Capture high-speed signals with exceptional fidelity.
- 6.25 GS/s Sample Rate: Ensure accurate representation of fast transients and high-frequency components.
- 12-bit Vertical Resolution: Achieve precise measurements with finer amplitude detail.
- Advanced Triggering: Isolate specific events with flexible trigger modes.
- Wave Inspector® Navigation: Efficiently search, zoom, and analyze long waveform records.
- Serial Protocol Decoding: Decode common serial buses for quick data analysis.
- Built-in Spectrum Analyzer: Perform frequency-domain measurements without additional equipment.
Applications
This oscilloscope is ideal for electronics design, manufacturing test, and research environments. Use it for debugging embedded systems, validating power integrity, analyzing high-speed serial data, and troubleshooting complex electronic circuits. Its combination of analog and digital channels makes it a versatile tool for mixed-signal design and verification.
Priya Sharma –
Procurement noted competitive lead time versus other distributors. The Tektronix MSO54B 5-BW-1000 Mixed Signal Oscilloscope: 4/32 Ch, 1 GHz, 6.25 GS/s powers up cleanly, self-test passes, and results align with our reference standards.
Nina Kowalski –
For a six-figure class instrument, expectations are high — the Tektronix MSO54B 5-BW-1000 Mixed Signal Oscilloscope: 4/32 Ch, 1 GHz, 6.25 GS/s has met them. IndoMultiMeter coordinated freight details and provided serial tracking without us chasing.
Emma Larsson –
The Tektronix MSO54B 5-BW-1000 Mixed Signal Oscilloscope: 4/32 Ch, 1 GHz, 6.25 GS/s is now a core asset in our test cell. Stable measurements, intuitive UI for a complex instrument, and seller communication stayed strong through customs clearance.
Budi Santoso –
We integrated the Tektronix MSO54B 5-BW-1000 Mixed Signal Oscilloscope: 4/32 Ch, 1 GHz, 6.25 GS/s into our RF/metrology lab and performance has matched factory specifications through several weeks of validation. Documentation package was complete for audit purposes.
James Wilson –
Premium instrument for premium requirements. The Tektronix MSO54B 5-BW-1000 Mixed Signal Oscilloscope: 4/32 Ch, 1 GHz, 6.25 GS/s delivers the bandwidth/accuracy we needed for next-gen product lines.
