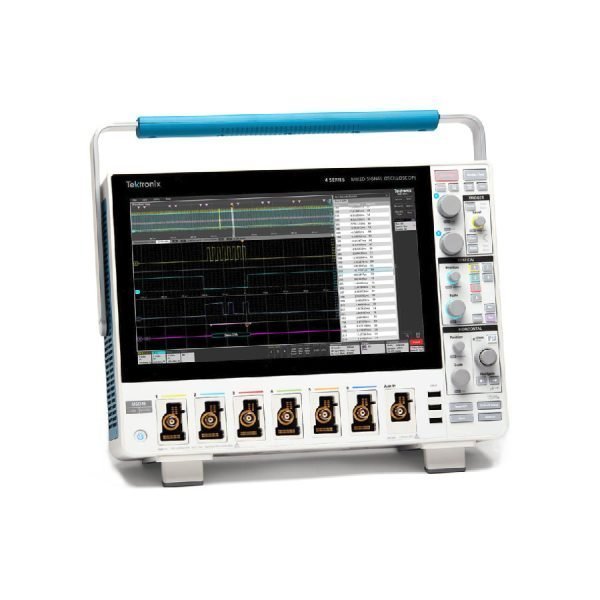

The Tektronix MSO46/4-BW-500 Mixed Signal Oscilloscope delivers exceptional performance and versatility for engineers and technicians tackling complex signal analysis. With 6/48 channels, 500 MHz bandwidth, and 6.25 GS/s sample rate, this 4 Series MSO ensures accurate capture and detailed insight into high-speed designs.
Key Features & Highlights
- 6/48 Channels: Simultaneously acquire and analyze multiple analog and digital signals for comprehensive system-level debugging.
- 500 MHz Bandwidth: Capture high-frequency components with confidence, ensuring signal integrity in demanding applications.
- 6.25 GS/s Sample Rate: Accurately represent fast transients and glitches, minimizing the risk of missing critical events.
- 4 Series MSO Architecture: Deep memory and fast waveform capture enable extended acquisitions and detailed analysis.
- 12-bit Vertical Resolution: Achieve precise measurements with superior signal detail compared to traditional 8-bit oscilloscopes.
- Advanced Triggering and Analysis: Simplify debugging with powerful trigger modes and automated measurements.
- Serial Bus Decoding: Decode I2C, SPI, CAN, and other protocols to quickly identify communication issues.
- Wave Inspector® Navigation: Efficiently search, zoom, and analyze waveforms to reduce troubleshooting time.
Applications
Ideal for design validation, troubleshooting, and production test in industries such as electronics, automotive, aerospace, and research. Whether debugging embedded systems, analyzing power integrity, or verifying serial protocols, the MSO46/4-BW-500 provides the tools needed to accelerate development cycles and ensure product reliability.
