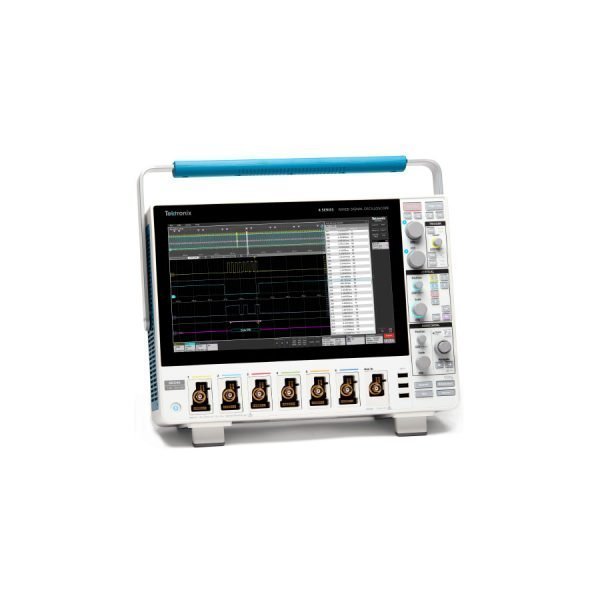

The Tektronix MSO46/4-BW-1500 Mixed Signal Oscilloscope combines high bandwidth, deep memory, and 12-bit resolution to provide exceptional signal visibility and measurement accuracy. With 6 analog and 48 digital channels, this instrument is engineered for complex mixed-signal debugging and validation tasks.
Key Features & Highlights
- 6/48 Channels: 6 analog plus 48 digital channels for comprehensive mixed-signal analysis.
- 1.5 GHz Bandwidth: Capture high-speed signals with confidence.
- 6.25 GS/s Sample Rate: Ensure accurate representation of fast transients.
- 12-bit Resolution: See fine details in your signals with 16 times the resolution of 8-bit scopes.
- Advanced Triggering: Trigger on edge, pulse width, logic, and more to isolate elusive events.
- Serial Bus Analysis: Decode and analyze I2C, SPI, CAN, and other protocols.
- Spectrum View: Simultaneously view time and frequency domains for deeper insight.
- Mask Testing: Automate pass/fail testing against industry standards.
- Wave Inspector® Control: Navigate and search waveforms effortlessly with touch-friendly controls.
Applications
This oscilloscope is ideal for embedded systems design, power electronics development, telecommunications testing, and any application requiring precise mixed-signal analysis. Its upgradeable bandwidth and software options ensure long-term investment protection.
