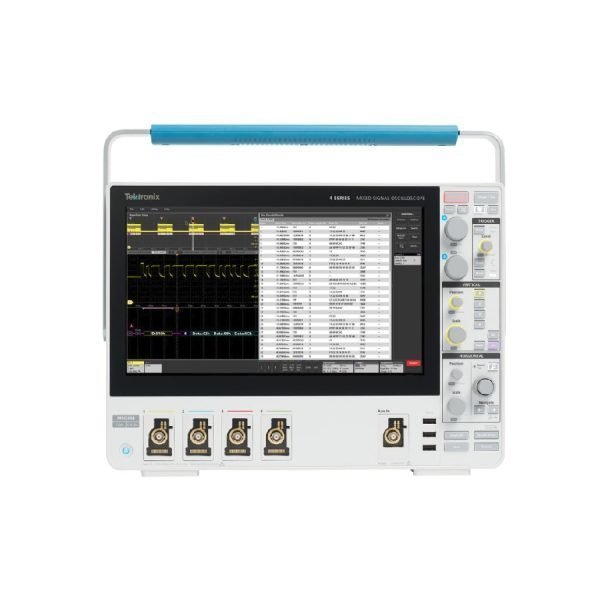

The Tektronix MSO44B/4-BW-1500 Mixed Signal Oscilloscope combines high bandwidth and versatile channel configuration to meet the demands of modern electronics design and debug. With 4 analog and 32 digital channels, 1.5 GHz bandwidth, and 6.25 GS/s sample rate, this instrument provides the performance needed for capturing and analyzing complex signals with precision.
Key Features & Highlights
- High-Fidelity Signal Acquisition: 1.5 GHz bandwidth and 6.25 GS/s sample rate ensure accurate capture of fast transients and high-frequency signals.
- Versatile Channel Configuration: 4 analog plus 32 digital channels allow simultaneous monitoring of mixed-signal systems, ideal for embedded and digital design validation.
- Advanced Triggering: Edge, pulse width, logic, and other advanced trigger modes help isolate specific events for efficient debugging.
- Intuitive Touchscreen Interface: 10.1-inch capacitive touchscreen with responsive menus streamlines operation and reduces learning curve.
- Comprehensive Analysis Tools: Built-in FFT, Bode plots, and histograms provide deep insight into signal characteristics without external software.
- 12-bit Vertical Resolution: Enhanced resolution reveals fine signal details, improving measurement accuracy.
Applications
This oscilloscope is well-suited for a wide range of applications, including embedded system design, power electronics, automotive electronics, and research and development. Its combination of analog and digital channels makes it particularly effective for debugging mixed-signal designs, validating serial protocols, and analyzing power integrity. Whether you are troubleshooting signal integrity issues or verifying complex system behavior, the Tektronix MSO44B/4-BW-1500 provides the tools and performance to accelerate your work.
Kevin Okafor –
Procurement noted competitive lead time versus other distributors. The Tektronix MSO44B 4-BW-1500 Mixed Signal Oscilloscope, 1.5 GHz, 4/32 Ch powers up cleanly, self-test passes, and results align with our reference standards.
Lisa Nguyen –
The Tektronix MSO44B 4-BW-1500 Mixed Signal Oscilloscope, 1.5 GHz, 4/32 Ch is now a core asset in our test cell. Stable measurements, intuitive UI for a complex instrument, and seller communication stayed strong through customs clearance.
Sarah Mitchell –
We integrated the Tektronix MSO44B 4-BW-1500 Mixed Signal Oscilloscope, 1.5 GHz, 4/32 Ch into our RF/metrology lab and performance has matched factory specifications through several weeks of validation. Documentation package was complete for audit purposes.
Ahmad Fauzi –
Premium instrument for premium requirements. The Tektronix MSO44B 4-BW-1500 Mixed Signal Oscilloscope, 1.5 GHz, 4/32 Ch delivers the bandwidth/accuracy we needed for next-gen product lines.
Rizki Pratama –
Trusted supplier for high-value test assets. The Tektronix MSO44B 4-BW-1500 Mixed Signal Oscilloscope, 1.5 GHz, 4/32 Ch arrived on the promised window and passed incoming inspection first time.
