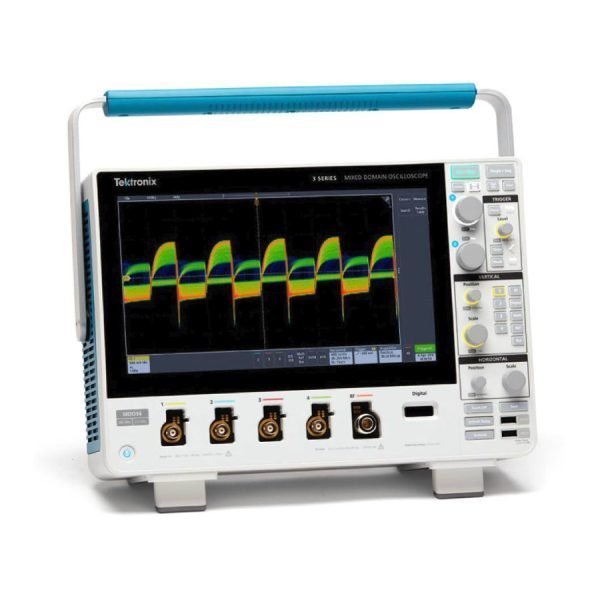

Tektronix MDO34/3-BW-100 Mixed Domain Oscilloscope
The Tektronix MDO34/3-BW-100 is a 4-channel mixed domain oscilloscope with 100MHz bandwidth, 2.5-5 GS/s sample rate, and 10 Mpts memory depth. It integrates an oscilloscope, spectrum analyzer, and logic analyzer into one instrument, enabling comprehensive signal analysis across time, frequency, and protocol domains.
Key Features & Highlights
- 4 Analog Channels with 100MHz bandwidth for detailed waveform capture.
- 2.5-5 GS/s Sample Rate ensures high-resolution signal representation.
- 10 Mpts Memory Depth allows long-duration captures for analysis.
- Mixed Domain Analysis correlates time, frequency, and protocol data for comprehensive troubleshooting.
- Advanced Triggering including edge, pulse width, and protocol-specific triggers to capture elusive events.
- Intuitive User Interface for seamless navigation between oscilloscope, spectrum, and logic modes.
- Comprehensive Measurement Suite for time, frequency, amplitude, and protocol parameters.
Applications
Ideal for embedded system debugging, power electronics design, and signal integrity analysis. The MDO34/3-BW-100 is suited for engineers and technicians in R&D, manufacturing test, and field service who need to analyze mixed-signal designs efficiently.
