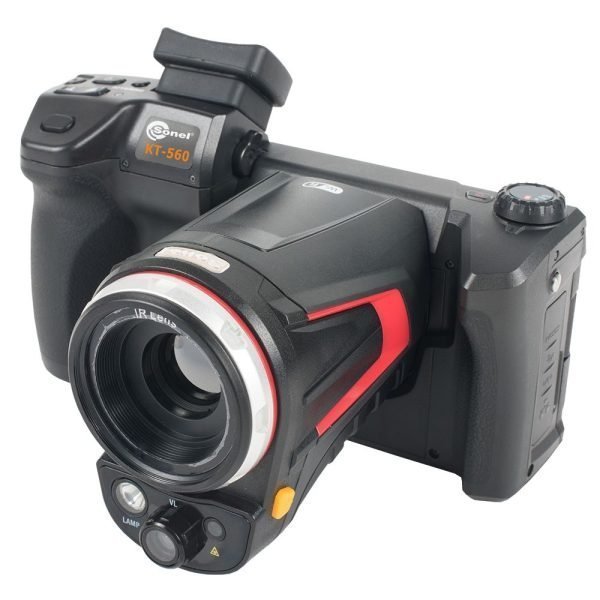

Sonel Test Measurement KT-560/25 Thermal Imager, 384×288 IR Resolution, -20 to 800°C

The Sonel KT-560/25 is a professional thermal imaging camera designed for accurate temperature measurement and robust performance in demanding industrial environments. With a high-resolution 384×288 pixel IR detector and temperature measurement capabilities up to 800°C (optionally 2000°C), this imager provides detailed thermal data for a wide range of applications. Its ergonomic design, featuring a 5-inch rotating touchscreen and swiveling lens, allows for comfortable and convenient inspections even in hard-to-reach areas.

Key Features & Highlights

• High-Resolution Imaging: 384×288 pixel IR resolution delivers sharp, detailed thermal images for precise analysis.
• Wide Temperature Range: Measures from -20°C to 800°C (optionally up to 2000°C) to cover diverse industrial processes.
• User-Friendly Operation: Intuitive menus on a large 5-inch touchscreen with adjustable viewing angle in all three axes; lens swivels up and down for easy access.
• Versatile Image Modes: Choose from IR, visible, picture-in-picture, and MIF (Multi-image Fusion) modes to enhance analysis.
• Comprehensive Recording: Capture still images and videos, store on SD card or transfer to PC via USB, Wi-Fi, Bluetooth, or Gigabit Ethernet.
• Built-in Tools: 5MP visual camera, GPS, digital compass, LED flashlight, and laser pointer for accurate documentation and navigation.
• On-the-Go Reporting: Generate and email PDF reports directly from the camera via Wi-Fi, eliminating the need for a PC.
• Long Battery Life: Removable Li-ion battery provides up to 4 hours of continuous operation.
• Durable Construction: Rugged design built to withstand tough industrial conditions.

Applications

The Sonel KT-560/25 is ideally suited for:

• Troubleshooting electrical installations, wiring, panels, motors, breakers, transformers, and switchgear.
• Monitoring thermal performance of industrial manufacturing processes.
• Identifying overheating of mechanical and electro-mechanical components.
• Building inspections for insulation leaks, energy audits, HVAC/R equipment, water damage, and pest detection.
• Locating hidden heat sources in dark or low-light conditions.
