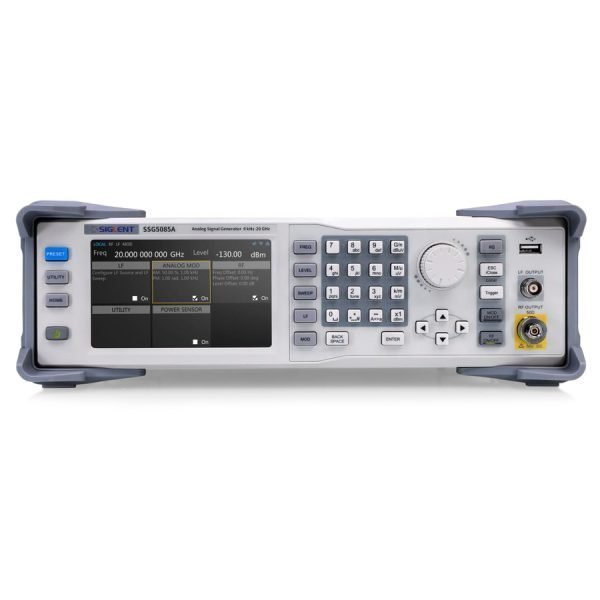

Siglent SSG5085A 20GHz RF Signal Generator, Single Channel

Precision 20GHz Signal Generation for Advanced RF Testing

The Siglent SSG5085A RF Signal Generator delivers exceptional frequency accuracy and stability across a 9 kHz to 20 GHz range, making it a versatile tool for demanding applications in wireless communications, aerospace, and defense. With its OCXO reference oscillator and low phase noise, the SSG5085A ensures reliable, repeatable measurements for R&D, production test, and calibration labs.

Key Features & Highlights

• Wide Frequency Range: 9 kHz to 20 GHz covers everything from baseband to microwave frequencies.
• High Output Power: -130 dBm to +20 dBm with excellent level accuracy.
• Versatile Modulation: Supports AM, FM, PM, ASK, FSK, PSK, and QAM with modulation bandwidth up to 2 GHz.
• Low Phase Noise: <-120 dBc/Hz at 10 kHz offset ensures clean signals for sensitive measurements.
• Exceptional Stability: OCXO reference with ±2 ppm frequency accuracy and ±0.5 ppm/year aging.
• Built-in Tracking Generator: Simplifies frequency response and gain/loss measurements.
• Remote Interfaces: USB, LAN, and GPIB for easy integration into automated test systems.

Applications

The SSG5085A is ideal for testing RF components, radar systems, satellite communications, and wireless devices. Its combination of wide frequency coverage, modulation flexibility, and high stability makes it a valuable asset for engineers in design validation, production test, and metrology.
