Product Overview

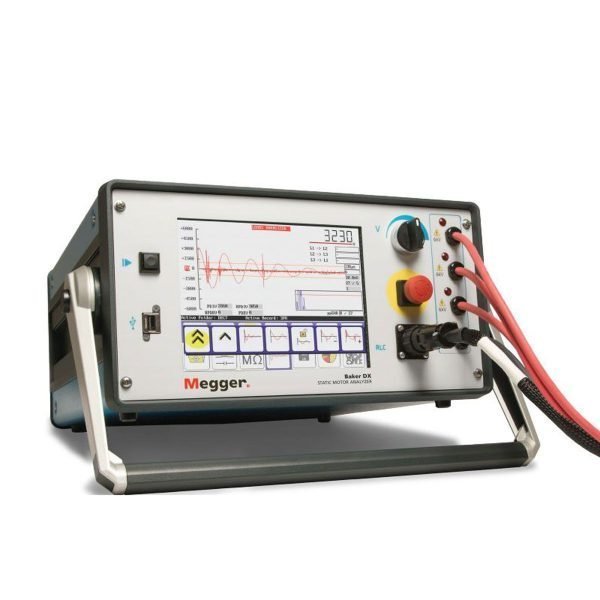

The Megger BAKER DX RLC PD 4 (Order #: DX-RLC-PD-4, Mfg #: 99-DX4-ZDS3PDRC) is a state-of-the-art static motor analyzer designed for comprehensive RLC (resistance, inductance, capacitance) and partial discharge (PD) testing. With a 4kV test voltage and a wide frequency range from 10 Hz to 10 MHz, this instrument delivers precise measurements and advanced diagnostics for critical electrical equipment. Its rugged, portable design and user-friendly interface make it an essential tool for maintenance engineers and technicians in industrial environments.
Key Features & Highlights
- 4kV Static Motor Analyzer: Perform high-voltage insulation testing, including dielectric absorption and polarization index, to assess insulation health.
- Full RLC Testing: Measure resistance, inductance, and capacitance with high accuracy and resolution, enabling comprehensive motor and coil analysis.
- Partial Discharge Detection: Identify insulation defects and potential failures early, reducing downtime and repair costs.
- Wide Frequency Range (10 Hz – 10 MHz): Supports a variety of test applications, from low-frequency impedance analysis to high-frequency PD detection.
- Large, Easy-to-Read Display: Intuitive interface with built-in help system simplifies operation and data interpretation.
- Rugged & Portable Design: Built for field use, ensuring reliable performance in demanding industrial settings.
Applications
The BAKER DX RLC PD 4 is ideal for testing and troubleshooting a wide range of electrical equipment, including:
- Motors and generators
- Transformers
- Cables and wiring systems
- Switchgear and other high-voltage components
It is particularly valuable for preventive maintenance programs, quality assurance in manufacturing, and diagnostic testing in repair facilities. By providing a complete electrical signature of the equipment, the analyzer helps engineers identify potential problems before they lead to costly failures.
