Overview

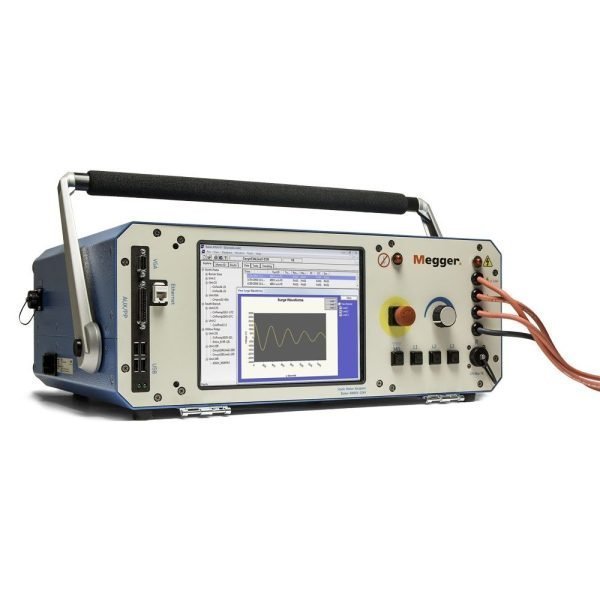

The Megger BAKER AWA-IV/12 is a sophisticated static motor analyzer engineered for comprehensive insulation testing of motors and generators. It evaluates the condition of turn-to-turn, phase-to-phase, and ground-wall insulation using standards-based low- and high-voltage tests. With its embedded computer and automated test sequences, the AWA-IV/12 delivers precise, repeatable results, making it an essential tool for predictive maintenance and quality assurance in industrial environments.
Key Features & Highlights
- Automated Test Sequences: User-programmable test sequences ensure repeatability and trend analysis over time, reducing manual effort and improving testing reliability.
- Comprehensive Testing Capabilities: Performs winding resistance, insulation resistance, dielectric analysis (DA), polarization index (PI), DC step-voltage, DC continuous ramped, DC hipot, and surge tests.
- Real-Time Monitoring & Safety: Continuously monitors voltage levels during testing; if a weakness is detected, the test is interrupted, and the operator is alerted with all parameters at the time of interruption.
- Centralized Data Management: Results can be stored, recalled, and managed using standard Microsoft Access, allowing site managers to monitor asset condition across multiple testers and routes.
- Portable & Durable: Includes a free Pelican case for protection during transport and field use.
- Software & Training Included: Comes with multiple user software, a USB flash drive with desktop software, and a free Level I or II static training course in Fort Collins, CO (must be completed within 1 year of purchase).
Applications
The Megger BAKER AWA-IV/12 is ideal for testing electrical insulation in power plants, substations, industrial facilities, and any environment where motor and generator reliability is critical. It is particularly suited for maintenance programs that require automated, repeatable testing and detailed documentation for trend analysis.
