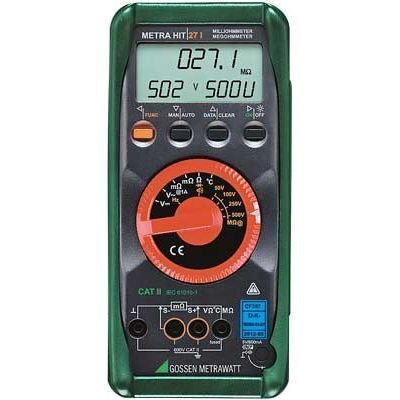

The Gossen Metrawatt METRAHIT 27I Handheld Multimeter combines multimeter, milliohmmeter, and insulation-tester functions for precision electrical service work. It supports insulation measurements into the gigaohm range and includes Kelvin four-wire measurement for low-resistance testing.
Key specifications
- Insulation resistance: 30.00 megaohms to 3.000 gigaohms with selectable 50, 100, 250, or 500 V test voltage.
- Milliohmmeter ranges from 3.000 milliohms to 300.00 milliohms at 1 A and 30.00 milliohms to 30.00 ohms at 200 mA.
- Kelvin connection for four-wire measurement.
- Resistance measurement from 300 ohms to 30 megaohms.
- Voltage measurement from 3 to 600 V DC and 3 to 600 V AC with plus or minus 30,000 digits.
- Frequency measurement from 300 Hz to 3 kHz.
- Data-hold memory for up to 1,200 measured values, continuity and diode testing, and overload protection.
- Backlit LCD, DAkkS calibration certificate, three rechargeable NiMH batteries, and charger.
- Includes GH18 protective cover, KS17-S measurement cable set, NA HIT 27 charger, KC4 Kelvin clips, operating instructions, and DAkkS certificate.
Recommended applications
Suitable for aviation service, electrical repair, insulation verification, low-resistance testing, and field maintenance. Confirm the required test leads, voltage range, and calibration documentation before ordering.
