Gossen Metrawatt AERO MASTER KIT 2 Insulation Multimeter for Avionics

Gossen Metrawatt AERO MASTER KIT 2 – Precision Insulation Testing for Avionics

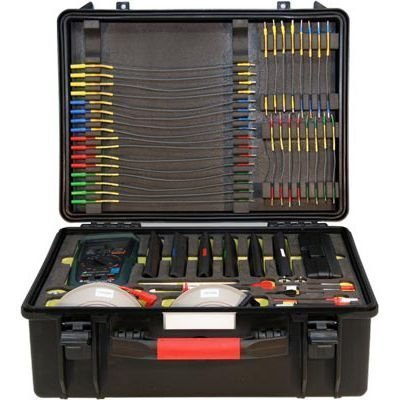

The Gossen Metrawatt AERO MASTER KIT 2 is a specialized insulation multimeter engineered for the demanding environment of aviation maintenance. This kit combines the METRAHIT ISO AERO multimeter with a comprehensive set of test leads, adapters, and MIL-spec connectors, all housed in a waterproof, pressure-tight hard case. It delivers reliable insulation resistance measurements up to 3.1 GΩ with selectable test voltages of 10, 50, 100, 250, and 500 V, making it an essential tool for avionics technicians.

Key Features & Highlights

• Insulation Resistance Testing: Measures up to 3.1 GΩ with interference voltage detection and test voltages from 10 to 500 V.
• Versatile Multimeter Functions: Measures voltage (V), resistance (Ω), capacitance (F), and frequency (Hz) with TRMS AC/AC+DC accuracy up to 10 kHz.
• Low-Pass Filter: Activatable 1 kHz / -3 dB filter for accurate V AC measurements in noisy environments.
• Current Measurement: Direct current from 100 nA to 10 A, plus support for current clamp sensors with selectable transformation ratios (1 mV:1 mA to 1 mV:1 A).
• Temperature Measurement: Precision temperature readings in °C or °F for Pt100/Pt1000 sensors and type K thermocouples.
• Advanced Display & Data Logging: 4¾-digit display with 30,000 counts, backlight, Min/Max storage, and data memory with internal clock.
• Safety & Durability: IP54 protection, dust and splash resistant, with a protective rubber cover.
• Data Transfer: Bidirectional infrared interface for PC connectivity; Windows software available for data analysis.
• Complete Avionics Kit: Includes measurement cables, terminals, adapters, and sockets for MIL plug connectors in a waterproof hard case.

Applications

This kit is specifically designed for avionics services, including testing of aircraft wiring, connectors, and electrical systems. It is also suitable for industrial maintenance, electrical installation testing, and any application requiring high-precision insulation resistance and multifunction measurement in harsh environments.
