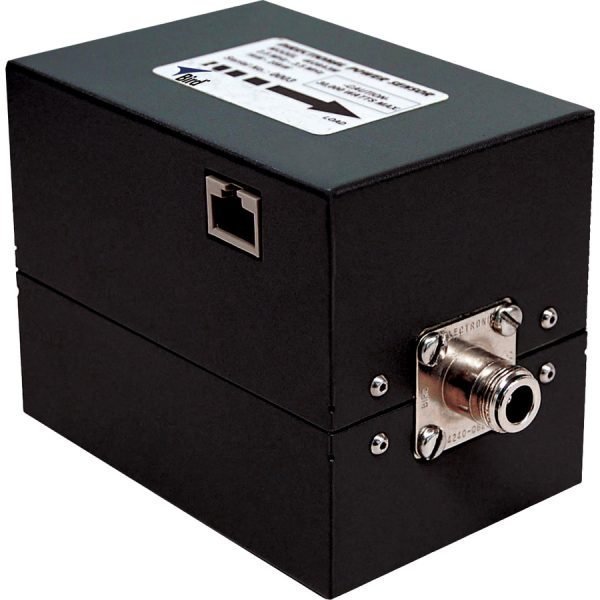

Bird 4028B100M RF Power Sensor, 95-100 MHz, 100 W-10 kW

The Bird 4028B100M RF Power Sensor is a precision instrument designed for accurate RF power measurement in the 95-100 MHz frequency range. With a wide power handling capability from 100 W to 10 kW, this sensor is a reliable choice for broadcast, telecommunications, and industrial applications where precise power monitoring is critical.

Key Features & Highlights

• Frequency Range: 95-100 MHz
• Power Range: 100 W – 10 kW
• Accuracy: ±0.5 dB
• Insertion Loss: <0.2 dB
• VSWR: <1.2:1
• Temperature Range: -40°C to +85°C
• Connector: N-type female
• Rugged Construction: Built to withstand harsh environments

Applications

This RF power sensor is well-suited for use in broadcast transmitters, RF amplifier testing, industrial heating systems, and any application requiring accurate power measurement in the 95-100 MHz band. Its wide power range and robust design make it a versatile tool for field and laboratory use.
