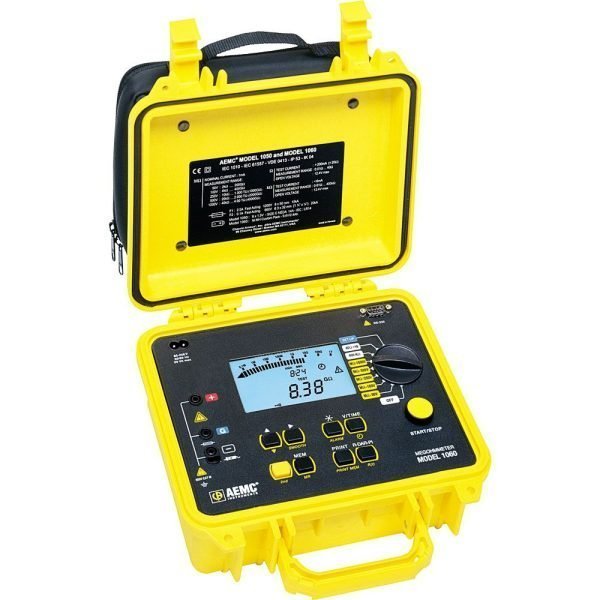

AEMC 1060 Digital Megohmmeter with Analog Bargraph, RS-232, CAT III 600V

AEMC 1060 Digital Megohmmeter: Precision Insulation Testing for Industrial Applications

The AEMC 1060 (Model 213.3.5) is a versatile digital megohmmeter designed for demanding electrical testing environments. With test voltages of 250V, 500V, 1000V, and 2500V, it provides accurate insulation resistance measurements up to 400GΩ. The instrument includes an analog bargraph for trend indication and a digital display for precise readings. Automatic DAR (Dielectric Absorption Ratio) and PI (Polarization Index) calculations simplify diagnostic testing, while capacitance measurement and automatic discharge with voltage display enhance safety and efficiency.

Key Features & Highlights

• Multiple Test Voltages: 250V, 500V, 1000V, 2500V for versatile insulation testing.
• Automatic DAR and PI: Calculates dielectric absorption ratio and polarization index automatically.
• Capacitance Measurement: Measures capacitance up to 50µF for cable and motor testing.
• Analog Bargraph & Digital Display: Combines trend indication with precise numerical readings.
• Automatic Discharge: Safely discharges capacitive voltage after tests, with voltage display.
• Programmable Test Time: Set test duration for consistent repeatable results.
• RS-232 Communication: Direct printing and data transfer to PC via included DataView Lite software.
• Safety Rated: IEC 61010-1 CAT III 600V for industrial environments.
• Complete Accessory Kit: Includes test leads, alligator clips, probes, power cord, and spare fuses.

Applications

The AEMC 1060 is ideal for preventive maintenance, commissioning, and troubleshooting of motors, cables, transformers, and switchgear. Its advanced features make it suitable for electrical contractors, plant maintenance technicians, and utility engineers who require reliable insulation testing and data logging capabilities.
