Brand
Martel
Martel Electronics builds documenting process calibrators, and the range here covers general pressure calibrators and pressure modules.
The line is positioned for instrument technicians who need as-found and as-left readings recorded against a procedure rather than simply displayed, which is what turns a measurement into a closed-out work order. Modules are matched to the base instrument, so confirm which Martel calibrator you own before selecting ranges, and check whether you need intrinsically safe certification for the areas you work in.
Martel Electronics 1919037 rugged high-accuracy pressure calibrator for portable pressure transmitter verification, gauge and switch testing, field calibration, and industrial instrumentation maintenance.
The Martel Electronics 1919919 is a portable pressure calibrator with a manual pump generating up to 300 PSI and vacuum to -12 PSI. It offers 0.035% FS accuracy, supports external pressure modules, and includes Pt100 RTD input and 24V loop power for comprehensive field calibration.
The Martel Electronics TC-100 is a high-accuracy pressure calibrator offering ±0.3°C accuracy for Type J thermocouples, supports 10 T/C types and mV, and includes a NIST certificate. Ideal for industrial calibration and testing applications.
The Martel Electronics 321A-15CV-30A is a high-accuracy pressure calibrator with dual isolated stainless steel sensors (15 PSI gauge/30 PSI absolute) and 0.025% F.S. accuracy. Ideal for gas custody transfer, it measures pressure, temperature (RTD), and 4-20 mA signals, with internal 24V loop power. Includes NIST-traceable certificate and soft case.
The Martel Electronics 1919410 is a versatile pressure calibrator featuring external pressure module support for all BetaPort-P modules, internal 24V loop power, and measure 24 mA or 30 VDC. With a large backlit display, switch test, and % error functions, it’s ideal for industrial calibration tasks.
The Martel Electronics 321A-300CV-1500G is a high-accuracy pressure calibrator with dual isolated sensors, 0.025% F.S. accuracy, and a 1500 PSI gauge range. Ideal for gas custody transfer and field calibration, it features temperature compensation, external pressure module support, and a backlit display.

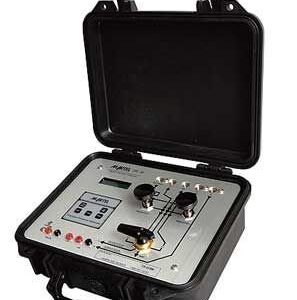

The Martel Electronics DPC-100 pressure calibrator delivers precise pressure regulation from 1 to 30 psig and static measurements up to 100 psig with 0.001 psi resolution and 0.035% accuracy. Featuring dual digital display for pressure and mA/voltage, gauge/differential/vacuum modes, and a rugged case, it’s ideal for industrial calibration tasks.
The Martel Electronics 1919003 is a rugged pressure calibrator kit designed for industrial use. It offers high accuracy, gauge or differential capability, and an easy-to-read display. Includes pump, carrying case, and NIST certificate.
The Martel Electronics 321A-1000G-3000G is a high-accuracy pressure calibrator with dual isolated sensors (0-1000 PSIG and 0-3000 PSIG), 0.025% F.S. accuracy, and temperature compensation. Ideal for gas custody transfer and field calibration, it features a backlit display, external pressure module support, and loop power supply.

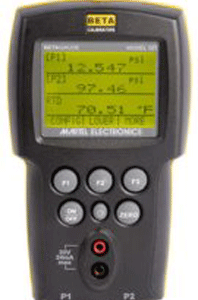

The Martel Electronics 1919550 is a high-accuracy pressure calibrator featuring two isolated stainless steel sensors with 0.025% F.S. accuracy. It measures 4-20 mA and up to 30 V DC, supports external pressure modules, and includes a large backlit LCD. Ideal for field calibration and industrial testing.
The Martel Electronics 321A-15G-1500G is a dual-sensor pressure calibrator with 15 PSI and 1500 PSI ranges, offering 0.025% F.S. accuracy. Ideal for gas custody transfer and field calibration, it features temperature compensation, external pressure module support, and a backlit graphic LCD.
The Martel Electronics 321A-5CV-30C is a high-accuracy pressure calibrator with dual isolated sensors (5 PSI and 30 PSI compound) and 0.025% F.S. accuracy. It features temperature compensation, external pressure module support, RTD input, and loop power for comprehensive field calibration.
